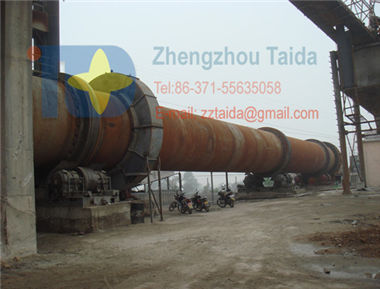

    Chemical rotary kiln

Inquiry Online


Discription of Chemical rotary kiln

Used for roasting process in chemical industry

Adopts DC motor and DC inverter cabinet, realizing stepless change

Uses fish scale stainless heat-proof steel armor plate to seal up

Uses hydraulic catch wheel equipment, making rotary kiln body up-down movement

Temperature control department consist of infrared measurement of temperature outside the rotary kiln body and thermocouple inside, achieving automatic control

TV monitor flame system combing with central control cabinet, make operating safe and steady

Chemical Rotary kiln technical parameter


Specificttions(mm)		 Kiln demensions Output(t/h) Rotation speed(r/min) Motor power(kw) Weight Note
Diameter(mm) Length(mm) Obliq-uity(%) (t)
Ø1.4*33 1.4 33 3 0.9-1.3 0.39-3.96 18.5 47.5 ----
Ø1.6*36 1.6 36 4 1.2-1.9 0.26-2.63 22 52 ----
Ø1.8*45 1.8 45 4 1.9-2.4 0.16-1.62 30 78.2 ----
Ø1.9*39 1.9 39 4 1.65-3 0.29-2.93 30 77.59 ----
Ø2.0*40 2 40 3 2.5-4 0.23-2.26 37 119.1 ----
Ø2.2*45 2.2 45 3.5 3.4-5.4 0.21-2.44 45 128.3 ----
Ø2.5*40 2.5 40 3.5 9.0-10.5 0.44-2.44 55 149.61 ----
Ø2.5*50 2.5 50 3 6.25-7.4 0.62-1.86 55 187.37 ----
Ø2.5*54 2.5 54 3.5 6.9-8.5 0.48-1.45 55 196.29 ----
Ø2.7*42 2.7 42 3.5 10.0-11.0 0.10-1.52 55 198.5 ----
Ø2.8*44 2.8 44 3.5 12.5-13.5 0.437-2.18 55 201.58 Suspension preheating kiln
Ø3.0*45 3 45 3.5 12.8-14.5 0.5-2.47 75 210.94 ----



Relevant cases：

  • Sludge Alkaline Stabilization D

    Sludge lime disposal project in Yanjiao sewage plant Yanjiao sewage treatment plant is located in the southwest of Yanjiao Development Zone. The project site is located in Yanjiao sewage plant in the northwest corner of processing, on the west side of...
  • Heavy Metal Sludge Dehydration

    Brief introduction of process flow 1.Collection and transportation of sludge: trained personnel to clients collected sludge with iron and space bag packaging, and by the special transport of dangerous goods vehicle transport to the factory dangerous g...
