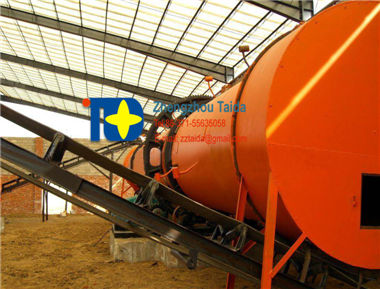

Drug Residue dryer
FOB Price: sent inquiry to us
Brand Name: Taida
Model Number: Can be customized
Mininum Order Quantity: 1SET
Supply Ability: 10 sets per month
Delivery Time: 25 days

buy email

With high temperature rapid drying machine drying process

Successful combination of a hot air dryer and trough rotary vane air dryer advantages

Used for residue (penicillin mycelium, antibiotic residues, oxytetracycline residue), marc (apple pomace, tomato slag, pear, and more

Monosodium glutamate bacterial protein, sugar beet residue, starch residue, corn residue, lemon acid tail liquid, feed, protein powder, and sludge drying

Materials in high-speed rotating blade under toss, crushed, and dispersed in the body at the same time with the full and effective access to high-temperature hot air, strong for the convective heat, thus achieving the quality, thermal transfer process, realized the material for two consecutive high-level drying

Drug residue dryer (drug residue dryer) features:

Advanced, high temperature and rapid drying process, heat-transfer coefficient, heat efficiency is high and dry strength

With high-speed stirring combination of viscous material to be dispersed can greatly improve the material and the heat medium contact area is conducive to drying process

Using a special scraper device, to avoid the phenomenon of wall material viscosity

Adapts to a wide range of simple operation, maintenance of small, stable product quality

Machine specially designed for drying dregs materials, has a variable blade angle of rotation, shaft speed adjustable

Sets to upper body than the wet material reflux layer, air dryer set special mixers and more

Drug residue drying machine (drug residue dryer) equipment components and working principle

Equipment mainly contain the drum dryer, feed screw, feed screw conveyor, dust collector, off the wind device, fan, control cabinets, and other components

Drug residue dryer (drug residue drying machine) works

Residue from the feed screw and directly into the drum dryer

Raising by spreading board hit by scattered broken device, negative pressure of the high-temperature materials and media full access to complete the heat and mass transfer process

Drum angle, and cited the role of sub-style, the material slowly moving from the feed side, drying out the material from the spiral exhaust, exhaust through the precipitation after entering the atmosphere

Technical specification:


Model		 TDYZ800 TDYZ1000 TDYZ1500 TDYZ2200
Throughput ≥800kg/h ≥1200kg/h ≥1800kg/h ≥3000kg/h
Water evaporation 350kg/h 650kg/h 900kg/h 1300kg/h
Speed and power 3-4rmp,4kw 3-4rmp,5.5kw 3-4rmp,10kw 3-4rmp,15.5kw
Fan power 7.5kw 11kw 15kw 18.5kw
Coal consumption ≤70kg/h ≤110kg/h ≤170kg/h ≤220kg/h
Power consumption ≤10 kw/h ≤15 kw/h ≤20 kw/h ≤30 kw/h
Area ≥80m2 ≥100m2 ≥120m2 ≥150m2
Plant height ≥3.8m ≥4.2m 5.5m ≥5.5m
Weight 5.5T 8.5T 15.5T 23.5T
