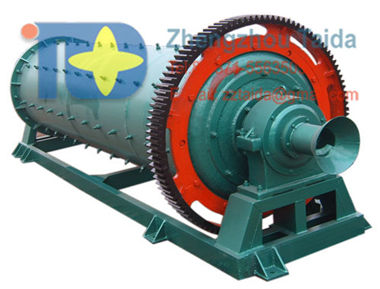

Dry type ball mill

Dry Ball mill is used to grind many kinds of mine and other materials, or to select the mine.

Dry Ball Mill Introduction:

Dry Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.

Dry Ball Mill Application:

They are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Dry Ball Mill Features:

1) Ball mill is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine

3) Ball mill is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine

6) to use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.

7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

8) The longer the ball mill runs, the finer the powder will be.

9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, and powder various chemicals.

Dry Ball mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specifications of Dry Ball Mill

Model and specification	Shell Rotation Speed(r/min)	Ball Load (t)	Feed size (mm)	Discharge size(mm)	Capacity (t/h)	Power (kw)	Weight (t)
Φ800×1800	38	1.5	0-15	0.075-0.8	0.3-0.8	Y11-4	2.1
Φ900×2100	38	2	0-15	0.075-0.8	0.5-1.3	Y15-4	3.2
Φ1200×2800	35	4.8	0-20	0.075-0.8	1.2-3.7	Y30-6	11.5
Φ1500×3500	28	8	0-25	0.075-0.8	3.3-8.8	Y55-75-6	16.5
Φ1830×3500	25	13	0-25	0.075-0.8	4-8	Y150-6	30
Φ2100×2700	24	15	0-25	0.075-0.8	3.5-25	Y150-8	33
Φ2100×3500	24	20	0-25	0.075-0.8	4.533	Y180-8	37
Φ 2200×7000	21	24	0-25	0.075-0.8	8-36	Y380-8	50
