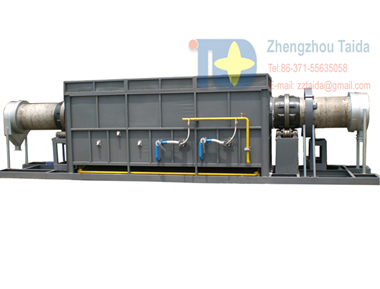

Indirect Rotary dryer
| FOB Price: | sent inquiry to us |
| Brand Name: | Taida |
| Model Number: | Can be customized |
| Mininum Order Quantity: | 1SET |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 25 days |
Mainly used in building materials, metallurgy, cement plant for drying of limestone slag, coal powder, slag, and clay stone
This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring
The dryer has advantages of reasonable structure, high efficiency, low energy consumption, and convenient for transportation
Technical parameters
|
Items |
JRG-15A | JRG-15B | JRG-18A | JRG-18B | JRG-21A | JRG-21B | JRG-25A | JRG-25B |
| Outer drum diameter (mm) | Ф1500 | Ф1500 | Ф1800 | Ф1800 | Ф2100 | Ф2100 | Ф2500 | Ф2500 |
| Inner drum diameter (mm) | Ф500 | Ф500 | Ф650 | Ф650 | Ф800 | Ф800 | Ф900 | Ф900 |
| Length (mm) | 16 | 22 | 18 | 23 | 21 | 23 | 23 | 25 |
| Volume (m3) | 22.4 | 30.9 | 33.4 | 37.6 | 51 | 55.4 | 78.2 | 85 |
