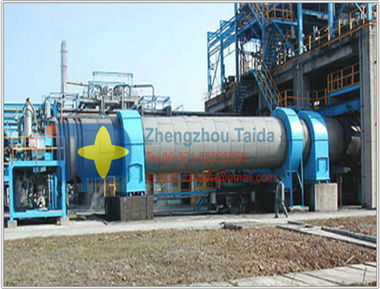

Steam Dryer
FOB Price: sent inquiry to us
Brand Name: Taida
Model Number: Can be customized
Mininum Order Quantity: 1SET
Supply Ability: 10 sets per month
Delivery Time: 25 days

buy email

Description:

Air steam dryer also knows as dryer, it is applied for the solid raw material which has flow ability

It is make heat intermediate (air, inert gases, gas or other hot gas) and raw material solid granule contact directly, solid granules are suspended in the airstreams, thus, two phases contacted area is enlarged, and the process of heat exchanger and material action is strengthened

This plant is widely applied for dispersed raw material drying

Features:

Easily achieve automatic operation, small investment, low energy consumption, small cubage, low labor cost, wide application, it is a ideal advanced machine

Fluidized state is stable, no dirty corner and broken out happen

Application:

Widely applied for drying granule and powder

It can produce raw materials in the area of chemical, foodstuff, pharmacy, construction materials, plastic, such as, starch, fish powder, salt, lees, gluten, feed, plastic resin, coal powder, ABC benzoic acid, 2, 3 acid, PVC, polypropylene, sodium sulfate, sodium pyrosulfite

Technical Specification of Steam Dryer

Model TDGD120 TDGD140 TDGD160 TDGD180 TDGD200 TDGD220 TDGD250
Capacity(t/d) 50 100 200 300 400 600 900
power(kw) 3 4 5.5 7.5 11 11 15
Steam pressure(Mpa) 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Machine weight(kg) 6350 8760 12700 13800 16700 19200 24200
Rotation speed(r/pm) 1-4 1-4 1-4 1-3 1-2 1-2 1-2
Dimensions(m) 5.8*1.9
*1.87		 5.8*2.1
*2.07		 6.3*2.26
*2.39		 7.3*2.4
*2.59		 7.85*2.66
*2.79		 8.85*2.86
*2.99		 9.9*3.16
*3.31
