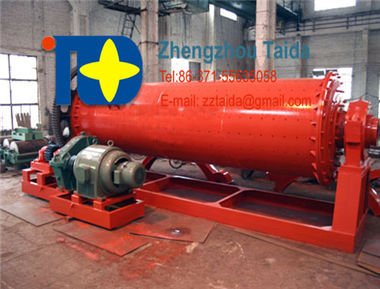

Tube ball mill /ienergy saving balll mill/ball milling equipments are a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Main technical parameters of Tube ball Mill:

Specification		900×2100	1200×2800	1500×3500	1830×3600	2100×3600	2400×3600	2700×3600
Diameter of bucket(mm)		900/700	1200/900	1500/1200	1830/1500	2100/1670	2400/1980	2700/2287
Length of bucket(mm)		1800/300	2500/300	3000/500	3000/600	3000/6000	3000/600	3000/600
Speed of bucket(r/min)		41	36	32	26.5	22.6	22.4	21.6
Motor	Model	Y2-160L-4	Y2-250M-6	Y2-315S-6	YR315m2-8	YR355M3-8	YR355L1-8J	YR355L2-8J
	Power (kw)	15	37	75	130	185	210	245
Weight of ball (t)		1.53	4.22	8.55	10	18.6	23	28
Feeding size (mm)		≤15	≤20	≤25	≤25	≤25	≤25	≤25
Capacity (t/h)		1.5-1.3	1.5-3.7	3.3-8.2	3.8-12	7.6-42	11-52	15-70
Weight  (kg )		3900	9520	15636	32000	44540	54250	78500
