| FOB Price: | sent inquiry to us |
| Brand Name: | Taida |
| Model Number: | Can be customized |
| Mininum Order Quantity: | 1SET |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 25 days |

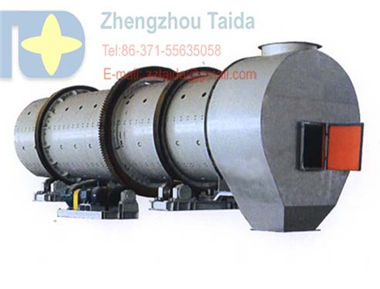

Discription of rotary drum granulator
Rotary drum agglomerator/granulator (also known as balling drums or rotary granulators) are very versatile pieces of equipment that can process a wide array of materials
The equipment is typically used for high capacity applications and usually requires some type of recycle depending on the product specifications
Drum granulators are used when an agglomeration - chemical reaction process is required
Typical applications of a rotary drum include, but are not limited to the following:
Agglomeration involving chemical reactions where the feed component(s) consist of reactive liquids or gases
The liquid and/or gas can be added into the bed of material to get a complete reaction and contain or reduce any emissions that may be generated
Many inorganic fertilizers are produced in this manner
Conversion of fine mineral ores into easy to handle agglomerates or balls for further processing
Iron ore, copper ore, and gold ore are a few examples
Granulation where the only feed or the majority of the feed is a liquid or melt such as urea granulation
Coating of finished products by spraying a liquid onto the bed of material
Mixing drums that can mix multiple solids and/or liquids
Specialty applications like a combination granulation-cooling drum
TAIDA's custom designs can accommodate the addition of other equipment and accessories such as pipe reactors, discharge trommel screens, liners (rubber or metal), spray bars, and spargers
If you need to control emissions or dusting, TAIDA's discharge breeching design makes capturing these materials easy so you don't have to worry about contamination of the surrounding area
As the one of the key equipments in fertilizer industry, rotary drum granulator is applicable to cold, heat, and guniting and ammoniated granulation and big scale fertilizer production of high, medium and low concentration
The cylinder body adopts special stainless steel or rubber plate lining structure
It can remove scar and peel burl automatically
Technical parameters
|
Specification(m) |
Shell | Capacity(t/h) | Power(kw) | |||
| I.D.(mm) | Length(mm) | Slope(°) | Rev(r/min) | |||
| Ø1.4×4 | 1400 | 4000 | 2.5 | 15.05 | 5 | 11 |
| Ø1.6×6 | 1600 | 6000 | 2.5 | 12 | 7 | 15 |
| Ø1.8×6 | 1800 | 6000 | 2.5 | 11.5 | 8 | 15 |
| Ø2.0×7 | 2000 | 7000 | 2.5 | 10.8 | 14 | 30 |
| Ø2.2×8 | 2200 | 8000 | 2.5 | 10.85 | 20 | 37 |
| Ø2.4×8 | 2400 | 8000 | 2.5 | 9.6 | 25 | 55 |
| Ø2.8×8 | 2800 | 8000 | 1.5 | 6.5 | 35 | 90 |
