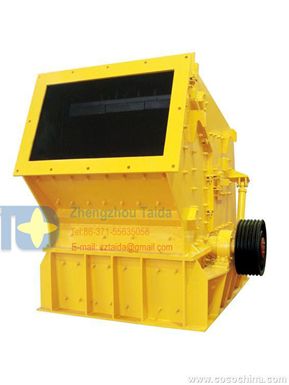

    Impact crusher



Discription of impact crusher:

Impact crusher is mainly used for crushing various kinds of large, medium, and small materials whose side length is less than 500mm and compression resistance should not be more than 350MPa

The impact crusher is widely used in hydroelectricity, highway, artificial stone and sand, building material, and more

Working principle:

When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers

When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously and then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed

The materials from large to small are all to be crushed at the impact chamber repeatedly

The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher

Features:

Special structure, connected without key, high chrome hammer, unique impact liner, deal with hard material, high efficiency and save energy, cubic shape of product, and adjustable output size

Technical Data of Impact crusher :


Model
Size of rotor (mm) Feed opening (mm) Max. feed size (mm) Handling capacity (t/h) Power of motor (kw) Weight (t)
PF1010 Φ1000×1050 400×1080 350 50-80 75 12
PF1210 Φ1250×1050 400×1080 350 70-130 110 14
PF1214 Φ1250×1400 400×1430 350 90-180 132 18
PF1315 Φ1320×1500 860×1520 500 120-250 200 19
PF1320 Φ1320×2000 860×2030 500 160-350 260 24
