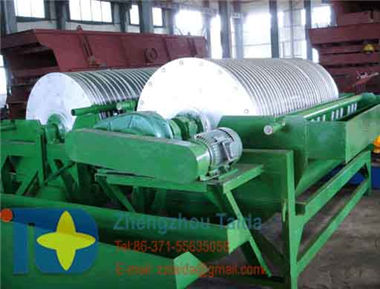

Magnetic separator
FOB Price:     sent inquiry to us
Brand Name:     Taida
Model Number:     Can be customized
Mininum Order Quantity:     1SET
Supply Ability:     10 sets per month
Delivery Time:     25 days

buy   email

The magnetic separator can separate raw materials with different magnetic rigidities

The machine works under the magnetic force and machine force

Magnetic separators are designed to recover ferromagnetic materials

The separators are available in designs and sizes to provide solutions for all applications

The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency

The magnetic separators are available in cyclic design with process vessel diameters smaller than 3mm

Magnetic separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, and more

In recent years, it is also more and more applied in purifying quartz, feldspar and nepheline

Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water

Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix

It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiary results, simple structure and easy to maintain

Technical parameters of Wet type permanent-magnet cylindrical type separator


Model		 Shell diameter(mm) Shell length(mm) Shell rotation speed(r/min) Feeding size(mm) Processing capacity(t/h) Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
