Brief introduction about marc dryer:

Marc dryer is a kind of bound water, large oil-based materials, water is not easily remove

We developed a complete equipment of dehydration drying equipment for bean dregs (soybean curb residue)

Bean dregs was dehydrated through high pressure

Most of the water is lost in this way just in a minute, then the bean dregs enter into the dryer

Bean dregs and the dry fresh hot air moving in the opposite direction under the effect of a special scraping wings (pusher plate) and dry-hot wind

This process is a little long, the temperature is relatively low and the material is running slowly

The dryer is a downstream drying and the outlet temperature is only 40°C

The whole drying process can fully use the thermal energy and the bean dregs even heated so the toasted bean dregs can have a good color, no burning material and low consumption

Mechanical structure and working principle:

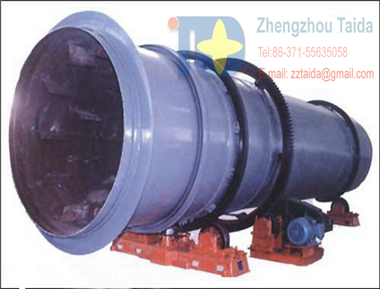

Marc dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet

The wet material is put into the dryer after dehydration

The material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller

Thus quicken the speed of drying, heat transferring and mass transferring

In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass

The technological and all equipments' parameter,structure of the production line are being careful analysis and verified by the experiment of drying the bean dregs, we fully take into account the large moisture content, high protein levels, big viscous and adopted a series of unique original technology to solve these problem to ensure a perfect drying results

Main features:

High degree of mechanization, large production capacity, continuous option

Simple and excellent structure, material running smoothly through the cylinder, operating convenience

Less mechanical failure, low maintain charge, low power consumption

Uniformity of drying product is good

Drying production line using a special scattered installations to ensure the dryer's drying effect

Use innovative and unique sealing device, and sophisticated keep-warm system

Thus reduce the coal consumption of the system effectively

The whole system holds a good performance of sealing

It also has a complete dust removal equipment

There is no dust spilling

It still has a good operating environment

The whole drying system uses electric centralized control, auto-control of temperature for hot air, high automation and convenient operation
