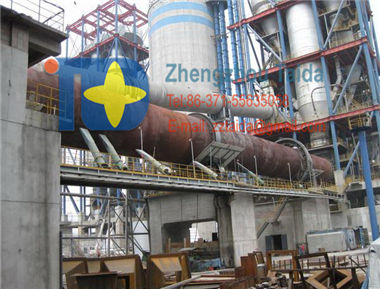

    Rotary kiln



Brief Introduction of Rotary kiln:

Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.Rotary kiln(cement kiln) is used for making of cement clinker and there are dry and wet methods to make cement. Rotary kiln (metallurgy chemical) kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant.Rotary kiln (lime kilnis) used for baking active lime and dolomite in the steel factory and ferroalloy factory.

Rotary kiln Technical Specification:

type technical specification main reducer main motor catch wheel catch points weight (t)
rotation speed (r/min) inclination (%) output (t/h) type speed ratio type power (kw) rotation speed (r/min)
Φ1.9/1.6×36 0.53-1.59 4 2.5-3 JZQ750-1 48.58 JZT-72-4 30 1200/400 machine 3 53
Φ2.1/1.8×36 0.5-1.51 4 4 UT2-110 163.36 JZS-81 30/10 1410/470 .. 3 75
Φ1.2×25 0.5-1.6 3 1.5 PM650 40.17 JZTY71-4 22 1200/120 .. 3 34
Φ1.6×32 0.158-0.258 3 2 PM750 48.57 JZJY61-4 15 1200/120 .. 3 46.82
Φ1.8×45 0.66-1.98 4 3.5 UT2-110 163.36 JZS-81 30/10 1410/470 .. 3 80
Φ2.2×50 0.125-1.25 3.5 4 ZS145-11 157 YCT280-4A 30 1320/132 .. 3 130.71
Φ2.5×50 0.516-1.549 3.5 5.5 ZS165-7 99.96 YCT355-4A 55 1320/440 .. 3 167.5
Φ3×48 0.3309-3.309 3.5 35 ZL130-14 32.11 ZSN4-250-21B 90 1000/100 .. 3 237
Φ3.2×50 0.398-3.975 3.5 50 ZL130-16 40.85 ZSN4-280-11B 190 1500/150 .. 3 263
Φ3.3×52 0.391-3.91 3.5 50 ZSY500-28 27.707 ZSN4-315-082 190 1000/100 .. 3 280.8
Φ4×60 0.396-3.96 3.5 104 ZSY630-35.5 34.601 ZSN4-355-092 315 1000/100 liquie prssure 3 487.5
Φ4.2×60 0.4165-4.165 3.5 116 ZSY710-35.5 35.526 ZSN4-355-12 420 1000/100 .. 3 576.1
Φ4.3×62 0.398-3.98 3.5 125 ZSY710-35.5 35.714 ZSN4-355-12 420 1000/100 .. 3 598.5
Φ4.8×74 0.35-4 4 208 JH710C-SW305-40 42.226 ZSN4-400-092 630 1500/130 .. 3 841

Related words:rotary kiln;rotary cement kiln;rotary kiln dryer;rotary lime kiln
