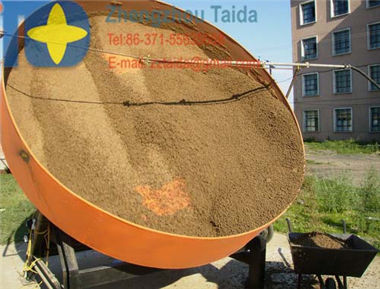

Disc granulator
| FOB Price: | sent inquiry to us |
| Brand Name: | Taida |
| Model Number: | Can be customized |
| Mininum Order Quantity: | 1SET |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 25 days |
Applications of Disc granulator:
Disc granulator is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure
It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue, and clunch
It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding
Advantages of Disc granulator:
Simple structure
Easy to adjust
Excellent performance
Notes: this machine is suitable for conveying materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials
Technical parameters of Disc granulator
| Specification (m) | Rotation speed of disk (r/min) | Capacity(t/h) | Power(kw) | Adjusting range of disk gradient | Dimensions( m ) | Weight (kg) |
| Ø2.2 | 14.25 | 0.8-1.2 | 7.5 | 35-55 | 2.8*2.75*2.58 | 2850 |
| Ø2.5 | 11.81 | 1.0-1.5 | 7.5 | 35-55 | 3.2*2.3*3 | 3250 |
| Ø2.8 | 11.21 | 1.0-2.5 | 7.5 | 35-55 | 3.4*2.6*3.1 | 3710 |
| Ø3.0 | 11.3 | 2.0-3.0 | 11 | 35-55 | 3.7*2.7*3.3 | 4350 |
| Ø3.2 | 9.6 | 2.0-3.5 | 11 | 35-55 | 3.9*2.7*3.4 | 5110 |
| Ø3.6 | 9.1 | 3.0-5.0 | 15 | 35-55 | 4.3*3.1*4.0 | 6510 |
