Cereal-dryer

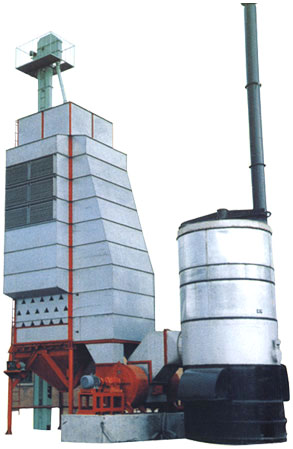

Cereal tower dryer

Cereal tower dryer

Cereal tower dryer Working principle:

Cereal tower dryer is ideal equipment used to dry cereal and oil. The products to process are imported from the top end via the feeding device to ensure that the equipment will always be in the full load condition during operation. Through an inward reversed, non-bottomed and the joint role of staggered array processing and multi-V-shaped baffle makes the products mixed thoughly. Working as the dry air access, fans put used gas into collector and purify them. The majority of dry air can be re-used with very little fuel consumpted.

Cereal tower dryer Design features:

Fuel flows in the equipment without power, easy to operate, less area used. Drying materials through diversity areas, achieve continuous, soothing, uniform exchange of the hot and humid . Use automatic control, and materials staying time in the tower can be easily adjusted. Through airflow control and movement, products processed can achieve uniformity and thorough drying. The tower dryer is ideal for slow, uniform drying.

Cereal tower dryer Characteristics:

Drying quality and natural drying are basically the same. Products processed smell and look normal after drying. Rice storms lumbar rate is low, coincident with the national standard. Soybean, rapeseed oil producing rate and wheat gluten quality are reduced. No dead ends appear in processed products, such as tablets Jiaohu phenomenon.

Cereal tower dryer Technical Specification:


specification item

YTD-2

YTD-5

YTD-10

YTD-15

YTD-20

YTD-25

YTD-35

output (t/h)

1-3

5

10

15

20

25

35

dryer heat load (+20℃)(kj/h)

1.8×106

3.9×106

6.4×106

9.6×106

12.8×106

16×106

22.3×106

dryer heat load (-20℃)kj/h

2.9×106

5.8×106

9.5×106

14.2×106

18.9×106

23.7×106

33×106

air heating furnace type

RFL-30

RFL-60

RFL-100

RFL-150

RFL-200

RFL-250

RFL-380

air heating furnace heat load (kj/h)

3×106

6×106

10×106

15×106

20.8×106

25.1×106

37.5×106

precipitation rate (%)

10-12

10-12

10-12

10-12

10-14

10-14

10-14

power (kw)

18.5

37.5

68

100

118

140

168
