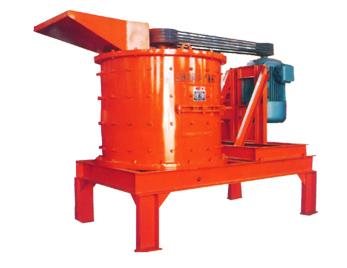

vertical composite crusher

vertical composite crusher

Vertical composite crusher(small-sized sand making machine)haas cobined technology both at home and abroad, and optimized main technical parameters. It’s a new product of fine crushing and coarse crushing,having the advantages of impact crushers and hammer crushers, mainly used in medium or fine crushing of cement raw material or clinker, as well as the crushing of building sand, iron ore, rocks, gypsum, coal, slags and other mid-hard ores. It has the characteristics of large crushing rate, less consumption of energy, smooth operation, simple structure and convenient maintenance. It is really new type of crushing equipment of multiple uses, high efficiency and low cost.

Technical specification:

type PFL500 PFL600 PFL800 PFL1000
Rotor diameter(mm) Φ450 Φ550 Φ650 Φ850
height(mm) Φ500 Φ600 Φ800 Φ1000
Main shaft speed(r/min) 1400 1200 1100 980
Material-in size(mm) 50 50 50 80
output(t/h) 3-8 5-10 10-20 25-40
power(kw) 4-5.5 4-7.5 4-22 4-45
