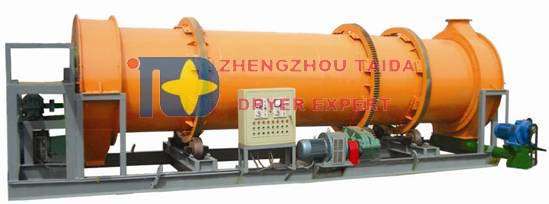

Sand Dryer

TDJ series of dryers are specially designed for sand drying. It has the dedicated structures not only for the dryer itself, but also for it’s equiped machines to avoid the sand being stick to inside walls of the machines and regaining moisture after drying. The dryer is wrapped a layer of insulating course to reduce heat loss.
Sand Dryer

Technical parameters


Model (mm)

Gradient (%)

Rotation speed (r/min)

Inlet air temperature (℃)

Power (kw)

Capacity (t/h)

Weight (t)

Remark

TDSZ-600

3-5

3-8

≤700

3

0.5-1.5

2.9

Note: The capacity has much to do with the heating mode for the dryer.

TDSZ-800

3-5

3-8

≤700

4

0.8-2.5

3.5

TDSZ-1000

3-5

3-8

≤700

5.5

2.0-4.5

5.6

TDSZ-1200

3-5

3-8

≤700

7.5

4-8

14

TDSZ-1500

3-5

2-6

≤800

15

8-15

17.8

TDSZ-1800

3-5

2-6

≤800

18.5

10-18

25

TDSZ-2000

3-5

1.5-6

≤800

18.5

15-22

36

TDSZ-2200

3-5

1.5-6

≤800

22

18-25

53.8

TDSZ-2400

3-5

1.5-5

≤800

37

22-35

62

TDSZ-3000

3-5

1.5-5

≤800

75

32-45

87.5

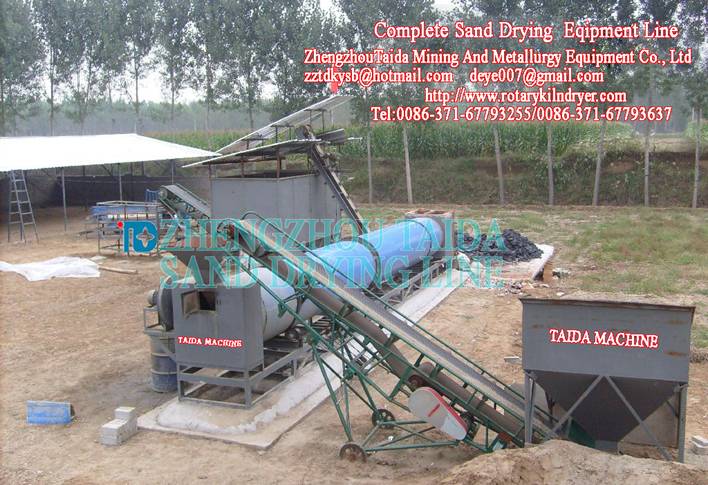

Working sand dryer in customer’s site
Sand Dryer
