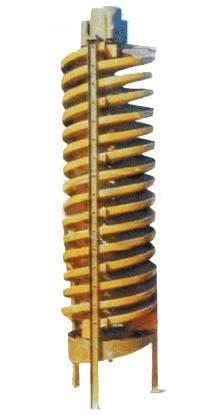

Summary:Concentrator Spiral Chute is our company of concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating of the sand 0re of the seashare, riverside, sand, rill is better. The advantage is reasonable structure, simple fixed, less space, easily operated, concentrating even, separated clearly, high efficient. The product is made of the chlorine plastic, the advantage is light, moisture proof, antirust, corrosion proof, properly suitable for the changing of th feeding size and chrome, granularity, grade, no noisy.

Model 5LL-1200 5LL-900 5LL-600 5LL-400
External diameter(mm) 1200 900 600 400
Screw distance(mm) 900/720/540 675/540/405 450/360/270 240/180
Ratio(scroll distance/diameter) 0.75/0.6/0.45 0.75/0.6/0.45 0.75/0.6/0.45 0.6/0.45
Transverse obliqiuty 9o 9o 9o 9o
Max. scroll buckets for each machine 4 4 3 2
Feeding granularity(mm) 0.3-0.03 0.3-0.03 0.2-0.02 0.2-0.02
Feeding thickness(%) 25-55 25-55 25-55 25-55
Capacity(t/h) 4-6 2-3 0.8-1.2 0.15-0.2
Dimensions Length(mm) 1360 1060 700 460
Width(mm) 1360 1060 700 460
Height(mm) 5230 4000 2600 1500
Weight(kg) 600 400 150 50
