magnetic separator

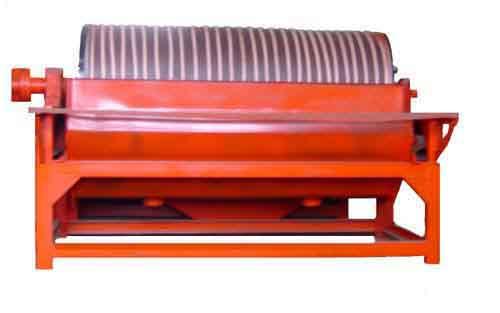

The Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain.

Technical parameters of Wet type permanent-magnet cylindrical type separator

Performance characteristics of Permanent magnetic force tumbler Also nkown as magnetic pulley, the permanent magnetic force tumbler is suitable for:

1. Fter medium and fine crushing, in order to improve the richness, the magnetic pulley is used for eliminating the wall rock in the iron ore.

2. To select the un-deoxidized ore and send back for re-agglomeration.

3. To eliminate iron in the ceramic industry for improving the ceramic quality.

4. To eliminate iron in coal, foundry sand, refractory, and other industries. Technical parameters of Permanent magnetic force tumbler
