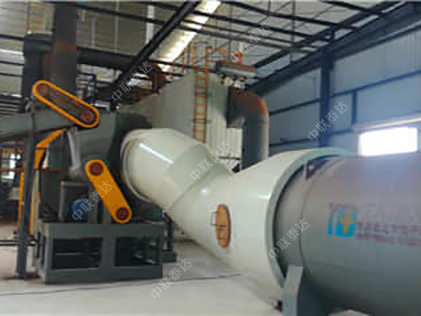

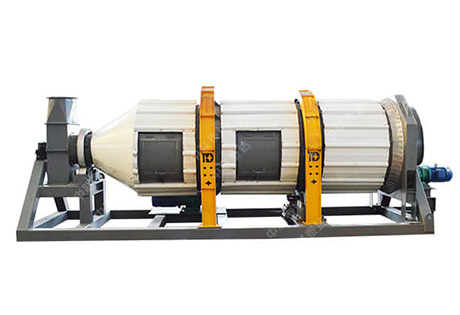

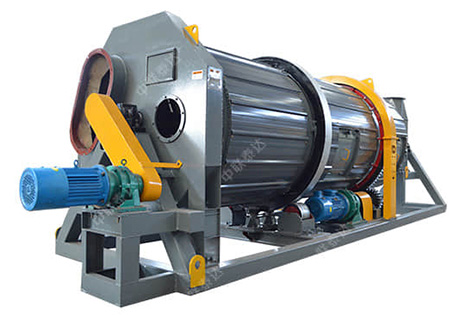

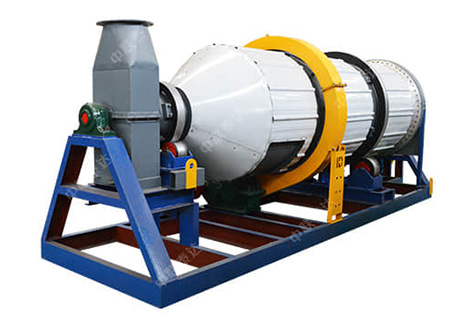

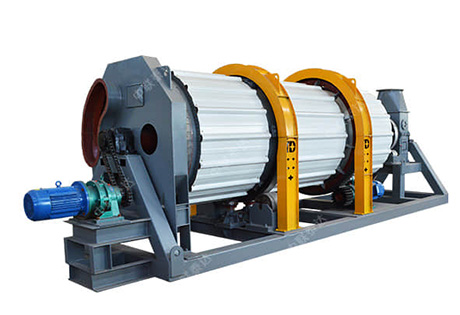

Brewing Sludge Dryer

Feed graularity: ≤50mm

Applications: it can be applied to metallurgy, drying, chemistry, building materials, refractory materials, brewing and other relavant industries.

Materials: non adhesive or weakly bonded materials;

Product introduction: with the rapid development of brewing industry, environmental problems brought about from this industry are getting more and more severe. Brewing industry consumes a lot of foodstuffs. Owing to low utilization rate of raw materials, much sewage and slags discharged, this industry has caused a lot of pollution to environment.

Sales Hotline:

0086-18539990967

Technical introduction

Brewing sludge dryer

  With the rapid development of brewing industry, environmental problems brought about from this industry are getting more and more severe. Brewing industry consumes a lot of foodstuffs. Owing to low utilization rate of raw materials, much sewage and slags discharged in the production process. In order to adhere to the environment protection law and water pollution control act, avoid water pollution from industry, stipulate project construction and management of industrial sewage, prevent environmental pollution and protect environment and people’s health, national environmental protection department has issued technical stipulation for industrial wastewater treatment engineering (herein after called for stipulation) which is implemented officially from 1st january, 2011. This article explains briefly about brewing sludge dryer which based on heat pump low temperature drying technology. I hope that it can help entrepreneurs in brewing industry.

Food processing industry refers to processing industry which is mainly about agriculture, animal husbandary, fishery and forestry. If it is classified according to raw materials used, food processing industry can be divided into meat products processing, fish processing, egg processing industry, fruit and vegetable processing, dairy processing, sugar industry, grain processing, starch industry, oil industry, condiment industry and food additive industry. Because raw materials in brewing food processing industry are from a very wide range and the kind of raw materials is various, the difference of sewage amount and quality is very obvious. Pollutants of sewage are mainly composed of solids such as color page, fruit shells, dogmeat and animal feathers. Matters floating on sewage contain oil, protein, starch and colloidal sustances. Also, there are silt and other organic matters. There are acid, alkali, salt and sugar melting in sewage. Sewage in food industry is characterized by high content of suspended matters and easily rotten. Sewage discharged in the production process contains high concentration organic matters which are degradable. There are much COD, BOD and SS which will pollute environment severely. If the sewage is discharged into water without effective disposal, a great amount of dissolved oxygen will be consumed, which will cause the death of fish and aquatic organism. Water will be polluted severely. As a result, sewage of food industry, espeicially brewing industry sludge, is a very important topic in modern society.

Advantages

Sewage front-end processing (air or precipitation): co-use of inorganic coagulant (PAC) and organic polymer flocculant (PAM); Post processing treatment of sludge dewatering: organic polymer flocculant (polyacrylamide) used as sludge dehydrating agent use; for selection of cationic polyacrylamide ion, this should be chosen according to the actual situation of the factory and do further laboratory screening test to determine.

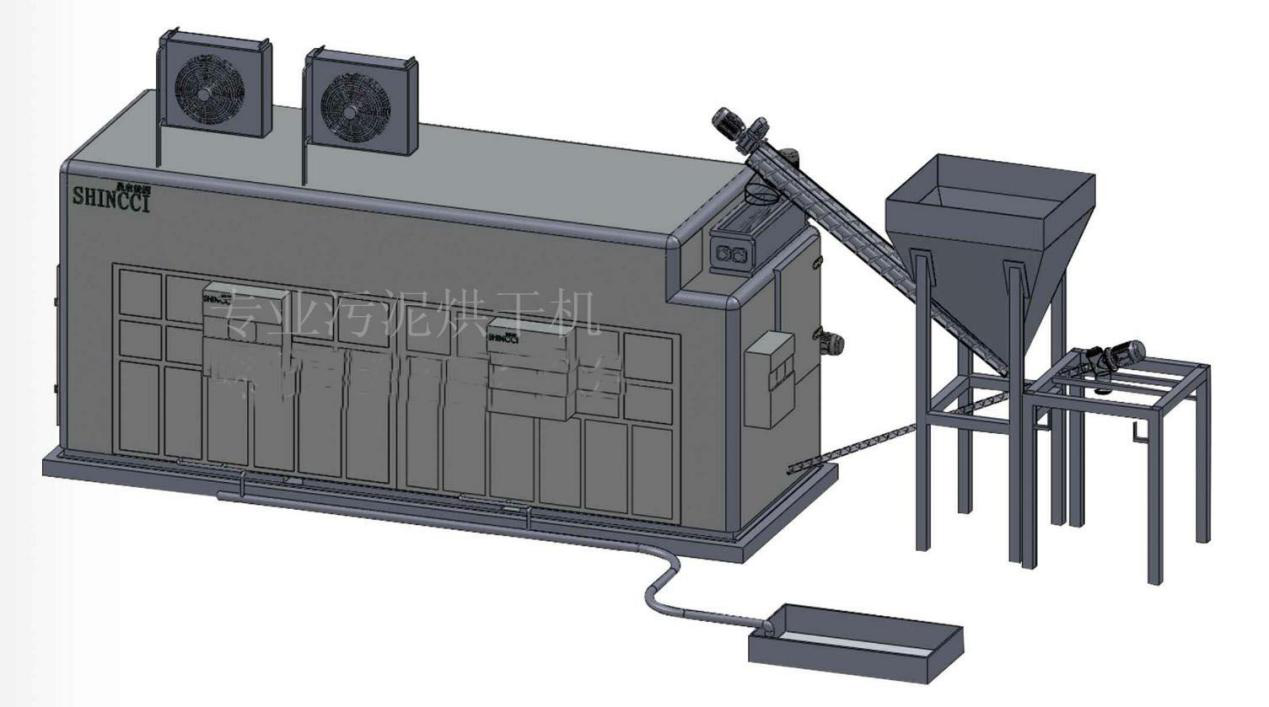

Structure of brewing sludge dryer:
Sludge dewatering drying: hot air circulating, condensation dewatering drying (dehumidificating heat pump). The core process has two steps: water absortption of sludge (hot air) pneumatolysis equals to wet air and dry materials (pnematolysis); wet air pass through dehumidificating heat pump equals to condensated water and dry hot air (condensation).
1. Adopt heat recovery technology of heat pump; closed drying mode; no waste heat discharged in the whole process; 2. Drying process carried out below 80 degrees centigrade; 3. Static piling: no friction produced between materials and ground; 4. No adhesive phase required (about 60%);5. Granular materials; no dust; 6. Low temperature of outlet materials (below 50 degree centigrade), no need for cooling; can be stored directly.
Brewing sludge dryer
Low-temperature sludge drying technology which is represented by sludge dewatering dryer represents future development direction. It is a kind of technology which disposes sludge through hot air produced from low-temperature drying system flow circulately in the system. The solid content of sludge can be maintained at 20% after being disposed by plate and frame filter press, bag filter press and centrifugal hydroextractor. After being disposed, the sludge can be dried to dry mud with 90% solid content. There is no need for special uniform distribution of sludge. Also, there is no requirement for moisture content. Only the external temperature is maintained from 10 to 35 degree centigrade, the whole process can run efficiently. The automatic control system of biodiesel sludge dryer can not only improve running efficiency, but also hold good running environment. It is always applied to disposing various sludges from small-medium sewage plants.
Brewing sludge dryer

Working principle

Technical parameters

Technical parameters
Brewing sludge dryer—bucket type
Model JHJ-WNL-1000FL JHJ-WNL-2000FL JHJ-WNL-4000FL JHJ-WNL-6000FL
Water amount eliminated/24H 1000kg 2000kg 4000kg 6000kg
Water amount eliminated/H 42kg 83kg 166kg 249kg
Ttotal power 14kw 26kw 50kw 74kw
Number of heat pump module 1 1 2 3
Number of compressor 2 4 8 12
Cooling method wind cooling wind cooling wind cooling wind cooling
Flow amount of cooling water // // // //
cryogen R134a R134a R134a R134a
Power supply 220V/380V460V3H/50HZ 220V/380V460V3H/50HZ 220V/380V460V3H/50HZ 220V/380V460V3H/50HZ
Drying temperature 48-56degree centigrade/65-80degree centigrade 48-56degree centigrade /65-80 degree centigrade 48-56degree centigrade/65-80degree centigrade 48-56degree centigrade/65-80degree centigrade
Control system Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC
Wet sludge application Moisture content:70 to 85% Moisture content:70 to 85%
Moisture content:70 to 85%

Moisture content:70 to 85%
Moisture content of dry materials Moisture content:10 to 50% (adjustable) Moisture content:10 to 50% (adjustable)
Moisture content:10 to 50% (adjustable)
Moisture content:10 to 50% (adjustable)
Molding method Slitting/granulation Slitting/granulation Slitting/granulation Slitting/granulation
Overall dimension mm 2435*2190*2420 3760*2190*2420 6460*2190*2420 9160*2190*2420
Structure Whole set
Brewing sludge dryer—continuous mode (belt type) chart 2
Brewing sludge dryer
Model JHJ-WNL-8000SL/FL JHJ-WNL-12000SL/FL JHJ-WNL-16000SL/FL
Moisture amount eliminated/24H 8000kg 12000kg 16000kg
Moisture amount eliminated/H 333kg 500kg 667kg
Total power 98kw 138kw 185kw
Number of heat pump module 2 3 4
Number of compressor 8 12 16
Cooling method Water cooling Water cooling Water cooling
Water amount used for cooling 4.5CBD/H 7CBD/H 9CBD/H
cryogen R134a R134a R134a
Power supply 220V/380V460V3H/50HZ 220V/380V460V3H/50HZ 220V/380V460V3H/50HZ
Drying temperature 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade
Control system Touch screen, PLC Touch screen, PLC Touch screen, PLC
Application of wet sludge Moisture content: 70% to 85% Moisture content: 70% to 85% Moisture content: 70% to 85%
moisture content of dry materials Moisture content: 10 to 50% (adjustable) Moisture content: 10 to 50% (adjustable) Moisture content: 10 to 50% (adjustable)
Molding method Slitting/ granulating Slitting/ granulating Slitting/ granulating
Overall dimension 7900*3110*3300 11150*3110*3300 14400*3110*3300
Structure Assemble
Brewing sludge dryer
Brewing sludge dryer—continous mode (belt type) chart 3
Model JHJ-WNL-20000SL JHJ-WNL-24000SL JHJ-WNL-28000SL JHJ-WNL-32000SL JHJ-WNL-36000SL JHJ-WNL-40000SL
Water amouont eliminated 20000kg 24000kg 28000kg 32000kg 36000kg 40000kg
Water amount eliminated 833kg 1000kg 1167kg 1333kg 1500kg 1667kg
Total power 230kw 276kw 322kw 368kw 415kw 460kw
Number of dehumidifying heat pump 5 6 7 8 9 10
Number of compressor 20 24 28 32 36 40
Cooling method water cooling water cooling  water cooling water cooling water cooling water cooling
Flow amount of cooling water 11m3/h 13.5m3/h 16m3/h 18m3/h 20.5m3/h 23m3/h
cryogen R134a R134a R134a R134a R134a R134a
Power supply 220/360/460V 220/360/460V 220/360/460V 220/360/460V 220/360/460V 220/360/460V
Drying temperature 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade
Control system Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC
Application of wet sludge moisture content 70-83% moisture content 70-83% moisture content
 70-83%
moisture content
70-83%
moisture content
70-83%
moisture content
70-83%
Moisture of dry materials Adjustable Adjustable Adjustable Adjustable

Adjustable Adjustable
Molding method Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating
Overall dimension 17650*3110*3300 209000*3110*3300 24150*3110*3300 27400*3110*3300 30650*3110*3300 33900*3110*3300
Structure Assemble Assemble
Assemble
Assemble Assemble Assemble

Mutil-layer printing and dyeing sludge dryer—continous mode (belt)

Model JHJ-WNL-40000SLF JHJ-WNL-48000SLF JHJ-WNL-56000SLF JHJ-WNL-64000SLF JHJ-WNL-72000SLF JHJ-WNL-80000SLF
Water amouont eliminated/24H 40000kg 48000kg 56000kg 64000kg 72000kg 80000kg
Water amouont eliminated/H 1666kg 2000kg 2334kg 2666kg 3000kg 3334kg
Total power 460kw 552kw 644kw 736kw 830kw 920kw
Number of dehumidifying heat pump 10 12 14 16 18 20
Number of compressor 40 48 56 64 72 80
Cooling method Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling
Flow amount of cooling water 23m3/h 27m3/h 32m3/h 36m3/h 41m3/h 46m3/h
Cryogen R134a R134a R134a R134a R134a R134a
Power supply 220/360/460V 220/360/460V 220/360/460V 220/360/460V 220/360/460V 220/360/460V
Drying temperature 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade)/65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade 48-56 degree centigrade /65-80 degree centigrade
Control system Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC Touch screen, PLC
Application of wet sludge Moisture content: 70% to 83% Moisture content: 70% to 83% Moisture content: 70% to 83% Moisture content: 70% to 83% Moisture content: 70% to 83% Moisture content: 70% to 83%
Moisture content of dry materials Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable
Molding method Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating Slitting/ granulating
Overall dimension 17650*3110*6600 209000*3110*6600 24150*3110*6600 27400*3110*6600 30650*3110*6600 33900*3110*6600
Structure Assemble
