Municipal Sludge Dryer

Power: 3 to 90 kw
Daily treatment capacity: 20 mt; 25 mt; 35 mt
Application range: It can be applied to various municipal sludge, domestic sludge, petrochemical sludge, plastics, oily sand and oily sludge.

Sales Hotline:

0086-18539990967

Technical introduction

There are a lot of microorganism in river and canal sludge. This problem is always neglected. Therefore, much damage is caused to human and environment. The amount of municipal sludge is getting more and more. The disposal and development of sludge becomes a problem which gets more and more attention. With the improvement of environmental protection and national economy, municipal sludge disposal gets greatly developed. Sludge dehydration makes agricultural utilization, fuel application, incineration and landfill possible.

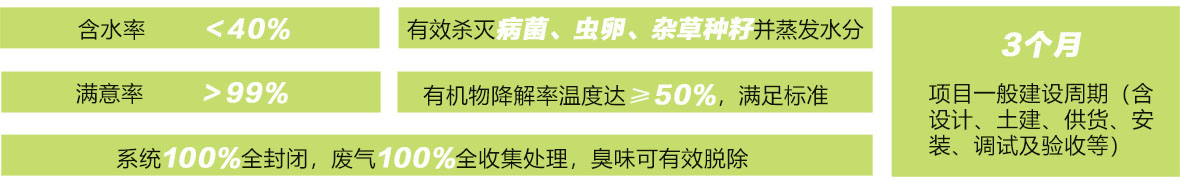

Advantages

1. large output and high thermal efficiency. Drying efficiency can reach 60% while drying unbound water. Strong drying intensity. Materials will disperse highly in airflow. All superficial area of materials is effective drying area. Coal consumption gets greatly reduced.
2. adopt computer to control the whole system; according to different drying requirements, different drying temperature and drying time can be designed in order to realize automatic drying. In this way, labor force and materials can be saved and working efficiency can be improved. It can be applied to many types of burners.
3. New internal structure can strengthen cleaning and heat conduction function. It can eliminate bond situation . It has stronger adaptability to materials’ moisture and stickiness. We adopt brand new type gears to replace traditional cast steel gear, which can not only save cost, but also reduce maintenance cost and drying time.
4. After adjustment of riding wheel, catch wheel will afford less pressure. In this way, the service life of riding wheel and catch wheel will be expanded. Production cost can be reduced and production effect can be improved.

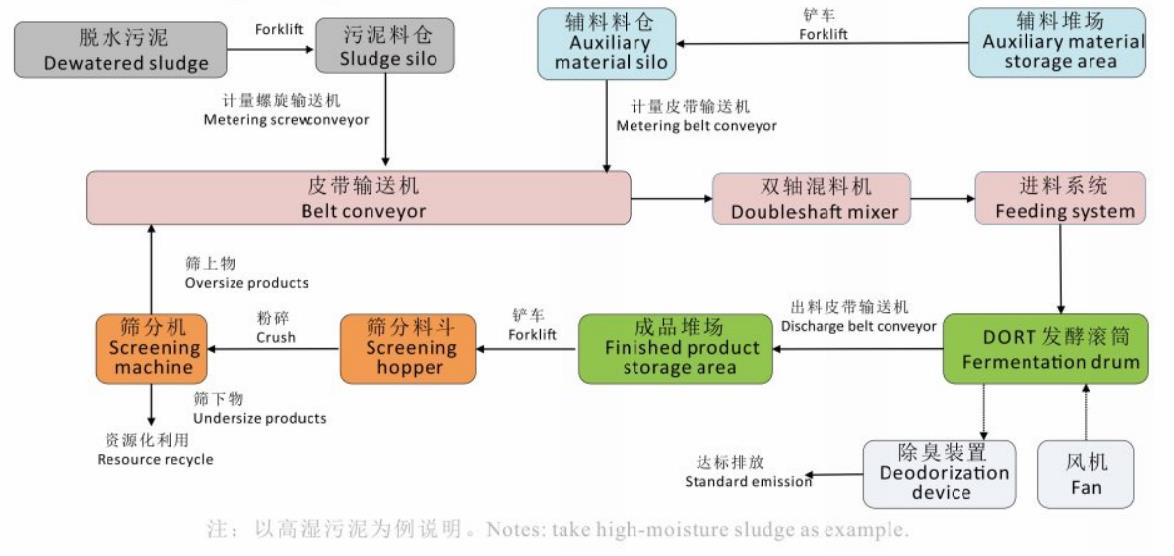

Working principle

1. New type municipal sludge dryer can dry the 90% moisture content to finished products one time. Aiming at the agglomeration feature of sludge in the drying process, we change the structural form of single-pass dryer. It adopts combined self-cleaning device. The application range of this dryer is greatly enlarged. It can not only applied to various sludge, but also can evaporate partial moisture content after preheating.
2. Through feeder, sludge enters material guide plate. With the rotation of drum, sludge is led to inclined materials lifting plate and is lifted to central place of drum. Then, a materials curtain is gradually formed. Hot air passes through materials. Then, sludge gets preheated and partial moisture content gets evaporated.
3. After scattering and movement of sludge to mobile grate type flange, materials will mix with preheated grates. Therefore, heat will be led to materials and majority of moisture content is evaporated. Meanwhile, flange will carry materials, then lift and scatter. These actions are repeated many times. There is a convection and heat exchange between materials and hot airflow.
4. Cleaning device which is buried in materials will slid along circular arc of lifting plate. Materials which stick on inner wall of lifting plate will be eliminated.
5. While cleaning device finishes the rotation of vertical line, it will also be dragged at the reverse side of lifting plate and clean materials which stick on wall of lifting plate. With continuous rotation of drum, moisture content gets evaporated and sludge gets further dried.
6. Meanwhile, clean device also works as breaking-up device. It improves drying speed. Finally, after dehydration, sludge becomes loose materials which will be discharged from outlet.

Technical parameters

Model Drum diameter (mm) Drum length (mm) Drum volume (m3) Rotary speed (r/min) Power (kW) Weight (t)
HG0.6×6 600 6000 1.7 1-8 3 2.9
HG0.8×8 800 8000 4 1-8 4 3.5
HG1×10 1000 10000 7.9 1-8 5.5 6.4
HG1.2×6 1200 6000 6.8 1-6 5.5 6.7
HG1.2×8 1200 8000 9 1-6 5.5 8.5
HG1.2×10 1200 10000 11.3 1-6 7.5 10.7
HG1.2×12 1200 12000 13.6 1-6 7.5 12.5
HG1.5×8 1500 8000 14.1 1-5 11 14.8
HG1.5×10 1500 10000 17.7 1-5 11 16
HG1.5×12 1500 12000 21.2 1-5 15 17.8
HG1.5×15 1500 15000 26.5 1-5 15 19.2
HG1.8×10 1800 10000 25.5 1-5 15 18.1
HG1.8×12 1800 12000 30.6 1-5 18.5 21
HG1.8×15 1800 15000 38.2 1-5 18.5 26.3
HG1.8×18 1800 18000 45.8 1-5 22 31.2
HG2.2×12 2200 12000 45.6 1-4 22 31
HG2.2×15 2200 15000 53.2 1-4 30 36.2
HG2.2×18 2200 18000 68.4 1-4 30 43.3
HG2.2×20 2200 20000 76 1-4 30 48.8
HG2.4×15 2400 15000 67.9 1-4 30 43.7
HG2.4×18 2400 18000 81.4 1-4 37 53
HG2.4×20 2400 20000 90.5 1-4 37 60.5
HG2.4×24 2400 24000 108.6 1-4 45 69.8
HG2.8×18 2800 18000 110.8 1-4 45 71.6
HG2.8×20 2800 20000 123.2 1-3 55 76.8
HG2.8×24 2800 24000 147.8 1-3 55 85
HG2.8×28 2800 28000 172.4 1-3 75 95
HG3×20 3000 20000 141.4 1-3 55 87
HG3×24 3000 24000 169.7 1-3 75 105
HG3×28 3000 28000 198 1-3 90 123
HG3.2×24 3200 24000 193 1-3 90 120
HG3.2×28 3200 28000 225.2 1-3 90 140
Note: there is no prior notice for any change of technical parameters.
