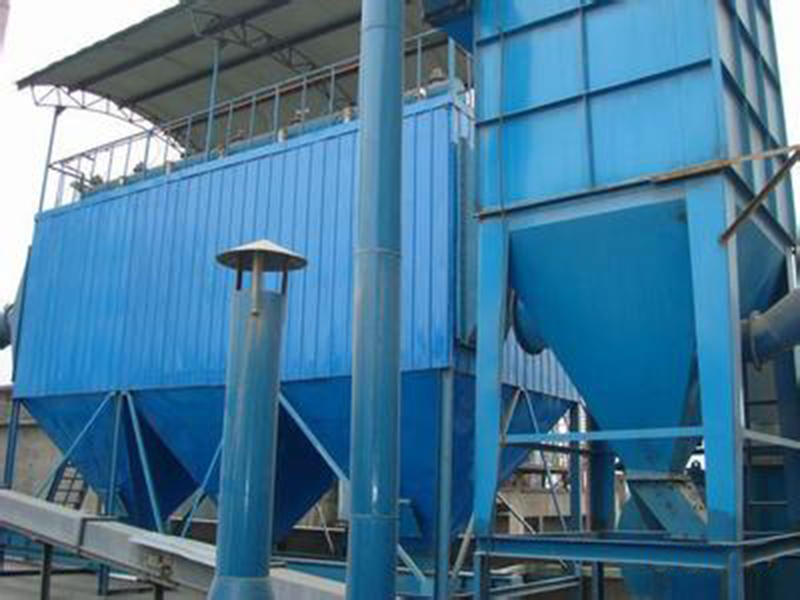

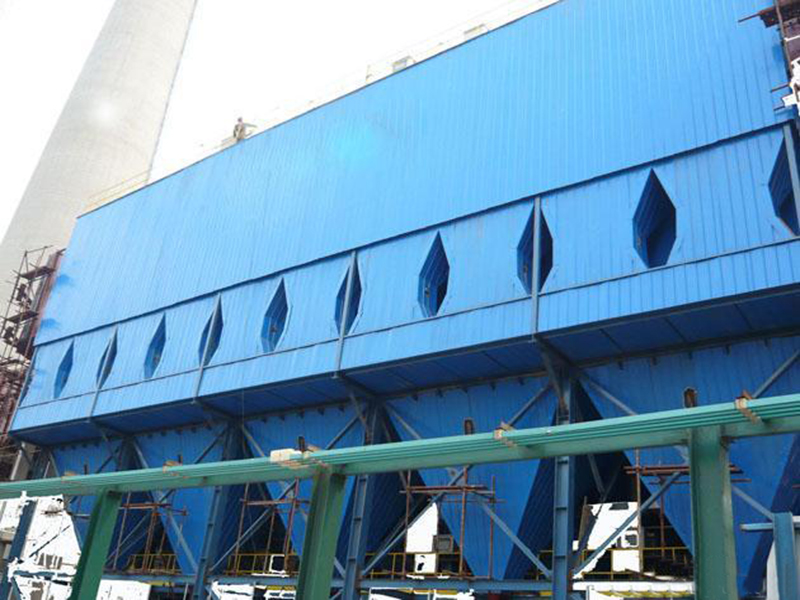

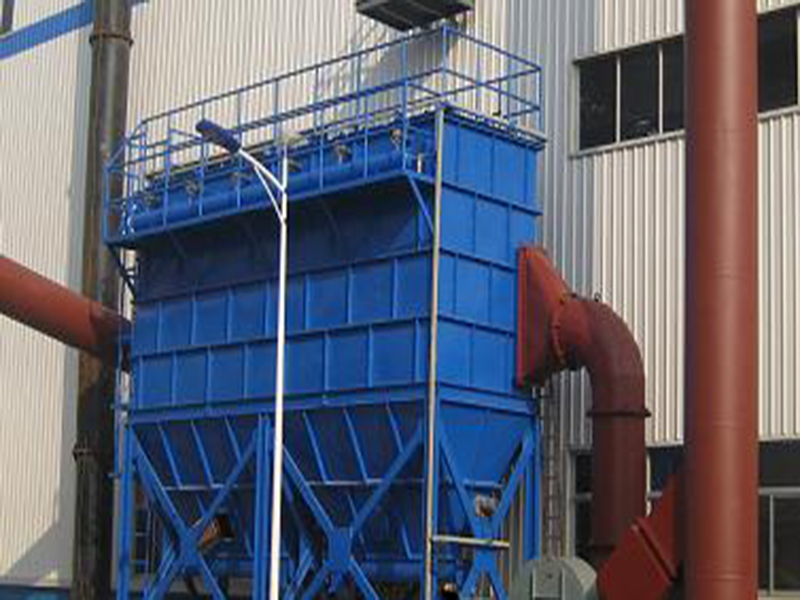

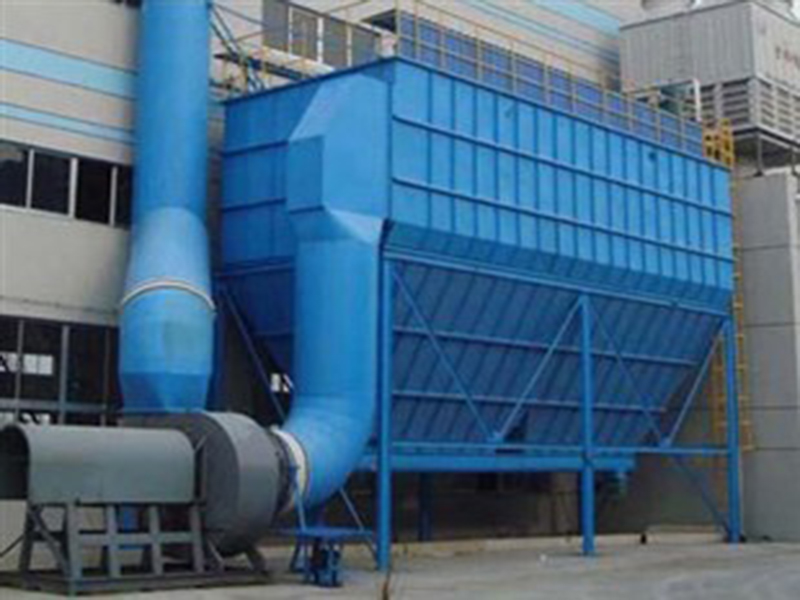

Pulse Bag Filter

Filtration velocity: 20 to 40l/m2.s
Applications: it is applied to metallurgy, mine, cement, thermal power company, building materials, foundry, chemistry, tabacco and asphalt mxing machine.
Materials: non adhesive and weakly bonded materials;
Product introductions: generally, bag dust wipers are named according to ash cleaning methods; it mainly consists of mechanical vibration type bag dust wiper.

Sales Hotline:

0086-18539990967

Technical introduction

Bag dust wiper
Generally, bag dust wipers are named according to ash cleaning methods; it mainly consists of mechanical vibration type bag dust wiper, large scale back blow type bag dust wiper and pulse nozzle type bag dust wipe. For fine dust with submicron particle size, it holds high grade dust-wiping efficiency and wide process range.
Applications: separate particle dust in industrial waste gas and fine dust; widely applied to it is applied to metallurgy, mine, cement, thermal power company, building materials, foundry, chemistry, tabacco asphalt mxing machine, corn, mechanical processing and boiler dust removal.

Advantages

Brief introduction:
MC-II pulse bag dust wiper is developed and upgraded on the basis of MC-I bag dust wiper. Besides high efficiency, big processing capacity, stable performance, simple operation and convenient maintenance, it holds many other advantages such as good operation effect, not easy to accumulate powder and wide application range. It is widely applied to ventilation&dust removal and dust recycle.

Working principle

Technical parameters

Technical parameters
Parameter/model MC24 MC36 MC48 MC60 MC72 MC84 MC96 MC120
(m2 )
Filter area
18 27 36 45 54 63 72 90
Number of filter bag 24 36 48 60 72 84 96 120
(L/m2.s)
Filtration velocity
20-40 20-40 20-40 20-40 20-40 20-40 20-40 20-40
(m3/h)
Filtered air volume
1300-2600 1950-3900 2600-5200 3240-6480 3900-7800 4550-9100 5200-10500 6500-13000
 (mm)
Maximum overal dimension

Length
1000 1400 1800 2200 2600 3000 3560 4360
Width *height

W×H
1450×3700  1450×3660 1450×4100
Ash cleaning device Number of pulse valve 4 6 8 10 12 14 16 20
(m3)
Compressed air consumed
0.07-0.30 0.11-0.40 0.15-0.50 0.18-0.60 0.22-0.60 0.25-0.90 0.29-0.90 0.37-0.90
(kg/cm2)
Pressure of compressed air
5-7


Parameter/model MC48 MC60 MC72 MC84 MC96 MC108 MC120
A 3530 3530 3530 3530 3530 3530 3530
B 3287 3287 3287 3287 3287 3287 3287
C 2552 2552 2552 2552 2552 2552 2552
D 1160 2260 1160 1160 1160 1160 1160
E 1350 1650 1950 2250 1350 2850 3150
F 1350 1350 1350 1350 1350 1350 1350
G 635 635 635 635 635 635 635
H 325 475 625 775 925 1075 1225
I 1586 1586 1586 1586 1586 1586 1486
J 790 790 790 790 850 850 850
K 824 824 824 824 880 880 880
M×N 400×500 500×500 600×500 700×600 700×600 800×600 800×600
P×Q 432×530 530×530 630×530 728×630 728×630 832×630 832×630
R×S 1050×1050 1350×1050 1650×1050 1950×1050 2250×1050 2250×1050 2850×1050
