Shaftless Screw Conveyor

【Screw diameter】:160-1250(mm)

【Rotation speed】: 71-16(r/min)

Application range】:suitable for horizontal conveying, inclined conveying, short distance conveying and long distance conveying, and can be equipped with weighing system.

【Production introduction】:used to conveying powder and small granularity. It is not suitable for conveying lumpy, pressure, sticky and caking materials.


Sales Hotline:

0086-18539990967

Technical introduction

Application range:

WLS type shafless screw conveyor is widely used, suitable for horizontal conveying, inclined conveying, short distance conveying and long distance conveying, and can be matched weighing system.

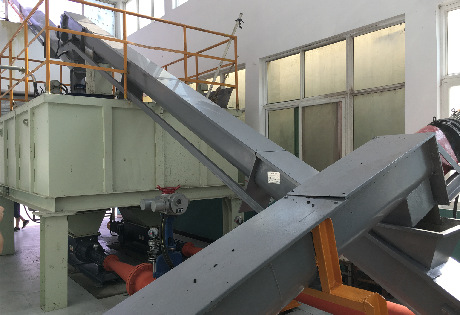

It is especially suitable for sludge transportation before and after dehydration.


Advantages

Performance and characteristics:
1. Simple structure, no shaft in conveyer trough; smoothly conveying of materials;
2. The whole conveying process is carried out in closed conveying trough; no material overflowing; preventing secondary pollution;
3. Shaftless screw adopts specical processing technic. The molding length once is longer tha n2.5 meters.
4. Run slowly; less noise; less energy consumption; no need for maintenance;

Working principle

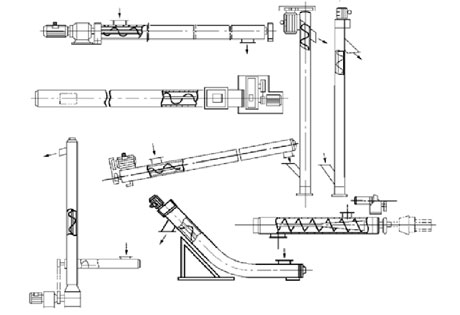

Installation form:
Standard form: fixed level installation or tilting installation; it also can adopt hanging type, mixing type of fixed type and tilting type, mobile type (can rotate around axis of feed inlet) and other installation types according to customer’s request;

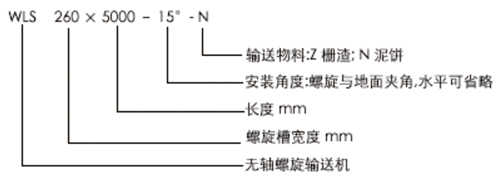

Model description:
Shaftless screw conveyor
Model description Structure and working principle:
WLS shaftless screw conveyer is mainly composed of driving device, shaftless screw, U-shaped slot, liner panel, cover plate and feed hopper. Working principle: materials are sent to conveyer from feed hopper. Then, materials are driven to discharge outlet by rotary shaftless screw.
Appearance and installation size chart
Shaftless screw conveyor


Technical parameters

Technical parameters:
Shaftless screw conveyor

Specification and model:

ModelWLS-260WLS-300WLS-320WLS-355WLS-420WLS-500
Power (KW)4.04.04.0/5.55.57.57.5
MaterialsStainless steel
(carbon steel)
Stainless steel
(carbon steel)
Stainless steel
(carbon steel)
Stainless steel
(carbon steel)
Stainless steel
(carbon steel)
stainless steel
(carbon steel)
