Biomass Gasifier

【Gas output】：90-1200m3/h

【Application range】：used to gasify biomass into combustible gas.

【Applicable material】：agricultural straw, corn cob, wood shavings, tree branc, waste from bamboo processing.

【Product introduction】：Biomass gasifier provided by Taeda featured in sufficient gas output and stable running performance.

Sales Hotline:

0086-18539990967

LEAVE MESSAGE INQUIRY ONLINE

Technical Introduction

Advantages

Working principle

Technical data

Technical introduction

Biomass gasifier fully makes use of agricultural and forestry wastes (like straw, tree branch, rice husk, fungus and waste biomass) to produce combustible gas and charcoal. It is a kind of biomass thermal transfer technology. Working principle: It heats biomass under incomplete combustion condition and organic hydrocarbons with higher molecular weight is cracked into combustible gas with low molecular weight like CO, H2 and CH4.

　　Application range of Taeda® biomass gasifier: provide heat source for various dryer, coating line bodies, electroplating plant ovens, boilers, small power station boilers, industrial boilers, incinerators, die-casting machines, drying equipment, kitchen equipment, drying equipment, food drying equipment, ironing equipment, Paint baking equipment, road construction equipment, industrial annealing furnaces, oil, gas, coal-fired large-tonnage boilers, asphalt heating equipment and other thermal energy industries.

Advantages

a. Scientific design, reasonable structure and good effect；
b.Safe and good adapability, simple operation; works as normal pressure equipment, without safety risk.
c.Energy saving and environment friendly. First, Fuels are easy to get and cost less expense. Optional fuels are agricultural straw, crushed wood chips and biomass wastes. Second, it can reduce pollution caused by straw incineration and there is no pollutant discharged out, which do help for environnent protection. Third, save use of non-renewable resources.
d. With government support, reduce economy burden.
e.Wide range of fuel, agricultural straw, corn cob, wood shavings, tree branc, waste from bamboo processing.

Working principle

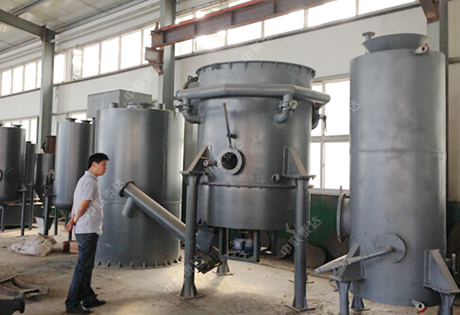

Biomass gasifier contains feeder, gasification furnace, cyclone collector, scrubbing tower, vacuum pump, gas storage cabinet and pipe.

生物质气化炉

Technical parameters

Combustible gas ingredient from different fuel（Unit：%）：

Fuel	N2	CO2	O2	CO	H2	CH4	其它
Wood shaving	46.0	12.6	0.6	23.5	13.4	2.5	1.4
Cob	46.2	13.1	0.7	22.5	13.2	2.2	2.1
Corn straw	46.7	13.3	0.8	21.4	13.2	2.2	2.4
Rice straw	48.9	13.7	0.8	19.7	12.5	1.9	2.5
Rice husk	49.7	14.1	0.8	19.6	11.6	1.9	2.3

Specification ：300,000-15,000,000kcal/h，designed and manufactured according to customers' demands。

Model	TY90	TY180	TY360	TY720	TY900	TY1200
Thermal output MJ/h	450	900	1800	3600	4500	6000
Gas output m3/h	90	180	360	720	900	1200
Gas calorific value kJ/ m3	＞5000	＞5000	＞5000	＞5000	＞5000	＞5000
Gasification effciency %	75	75	75	75	75	75
Ash content in tar mg/ m3	＜20	＜20	＜20	＜20	＜20	＜20
