    Clay soil dryer

Inquiry Online

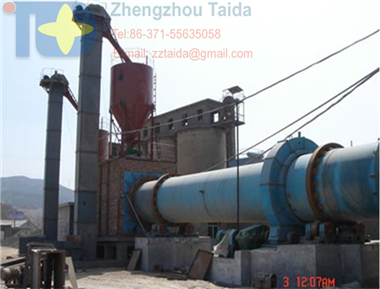

Clay soil dryer introduction

Clay soil dryer is also called rotary dryer, which is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube, the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.

Clay soil dryer application composition:

clay soil dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.

Clay soil dryer advantages:

reasonable structure

High efficiency,

Low energy consumption

Convenient transportation.

Convenient and reliable operation

Performance characteristics of clay soil dryer:

This series driyers is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.

Techinical parameter of clay soil dryer


Model		 inner diameter
(M)		 length
(M)		 inclination
(%)		 motor powe(kw) speed of revolution (r/min) maximum evaporation
(t/h)		 floor space
(length m×width m)
NTD-12120 1.2 12 3-5% ≥11 3-8 0.5-1 18×3
NTD-15140
NTD-15150
NTD-15160		 1.5 14 ≥15 1.5-2.5 25×4
15
16
NTD-18150
NTD-18160
NTD-18180		 1.8 15 ≥18.5 2.5-4 35×5
16
18
NTD-20180
NTD-20200
NTD-20220		 2.0 18 ≥22 4-6 35×5
20
22
NTD-22180
NTD-22200
NTD-22220		 2.2 18 ≥30 5-8 40×6
20
22
NTD-25180
NTD-25200
NTD-25220		 2.5 18 ≥40 3-5 7-10 45×8
20
22
NTD-26180
NTD-26200
NTD-26220		 2.6 18 ≥45 8-11 45×8
20
22
NTD-28180
NTD-28200
NTD-28220		 2.8 18 ≥75 9-14 50×10
20
22
NTD-30180
NTD-30200
NTD-30220		 3.0 18 ≥110 12-16 50×12
20
22
NTD-32180
NTD-32200
NTD-32220		 3.2 18 ≥132 14-18 50×14
20
22
NTD-34180
NTD-34200
NTD-34220		 3.4 18 ≥150 19-28 50×15
20
22
NTD-36180
NTD-36200
NTD-36220		 3.6 18 ≥170 25-35 50×18
20
22
