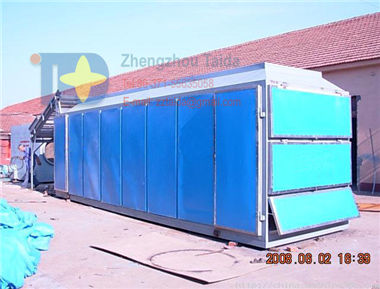

    Seaweed dryer

Inquiry Online


1. Seaweed dryer is the professional dryer for fruits

2. Quick and good quality

3. High effeciency

4. Keep primitive color

Seaweed dryer can meet to dry different seaweed big granule and produce in batch. Meanwhile it can maintain content of nutrition, color, etc of vegetable in most extent.

The type raw materials are garlic, cushaw, giantarum, white turnip, yam, bamboo shoot, capsicum, onion, apple, etc.

When operation, air will be entered into the dryer and heated through heat exchanger. Being adapted scientific and reasonable cycle method, the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange. Under the action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle. Final air with Iow temperature and high damp will be out. The whole drying process with stably and high effect will be finished.

Seaweed Dryer Technical parameters


Type		 DWT1.6-I
(fed table)		 DWT1.6-II
(middle table)		 DWT1.6-III
(discharge table)		 DWT2-I
(fed table)		 DWT2-II
(middle table)		 DWT2-III
(discharge table)
belt width m 1.6 1.6 1.6 2 2 2
drying section length m 10 10 8 10 10 8
thickness of the material to be covered mm ≤100 ≤100 ≤100 ≤100 ≤100 ≤100
temperature 50-150 50-150 50-150 50-150 50-150 50-150
Areae of heat conduction m2 525 398 262.5 656 497 327.5
steam pressureMpa 0.2-0.8 0.2-0.8 0.2-0.8 0.2-0.8 0.2-0.8 0.2-0.8
drying time h 0.2-1.2 0.2-1.2 0.2-1.2 0.2-1.2 0.2-1.2 0.2-1.2
power kw 0.75 0.75 0.75 0.75 0.75 0.75
overall Dim.m 12×1.81×1.9 12×1.81×1.9 10×1.81×1.9 12×2.4×1.92 12×2.4×1.92 10×2.4×1.92


Relevant cases：

  • Sludge Alkaline Stabilization D

    Sludge lime disposal project in Yanjiao sewage plant Yanjiao sewage treatment plant is located in the southwest of Yanjiao Development Zone. The project site is located in Yanjiao sewage plant in the northwest corner of processing, on the west side of...
  • Heavy Metal Sludge Dehydration

    Brief introduction of process flow 1.Collection and transportation of sludge: trained personnel to clients collected sludge with iron and space bag packaging, and by the special transport of dangerous goods vehicle transport to the factory dangerous g...
