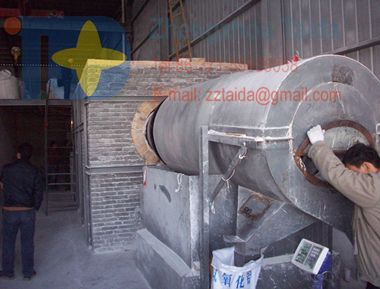

Aluminum Hydroxide Dryer

Zhengzhou Taida innovates a new professional drying equipment of drying aluminum hydroxide according to aluminum hydroxide manufacturer. This kinds of aluminum hydroxide drying machine based on traditional rotary dryer machine and special characteristics of aluminum hydroxide, infuse our advanced concept, pass through all the stuffs’ effort and quite a lot experiments. Aluminum hydroxide drying machine has already launched into the market, and received wide acclaim.

Application of Aluminum Hydroxide drying Machine:

Aluminum hydroxide, a widely used inorganic resistance Fuel Additive, it prevent flaming, fuming, and the producing of toxic gas. It can be used in thermal equilibrium diagram, plastic Packaging Materials, synthetic rubber, paint, building material, etc.

Traditional Drying Machine VS Aluminum Hydroxide Drying Machine:

1、Aluminum hydroxide drying machine takes indirect heating mode, with heating region in the front part of dryer equipment, this makes materials get into drying condition earlier, improved drying efficiency and reduced dried materials’s output temperature.　
2、Having scale-manner sealing valve in the barrel, it can mounted indirect heating equipment directly, reduced the damage to the dryer barrel.
3、Adopting cooling-sifting equipment at discharge hole , it can adjust and control the quantity of materials.
4、Aluminum Hydroxide drying Machine put dust pelletizing system before drying machine, reducing the producing of dust, improving drying efficiency.

Technical Specification of Aluminum Hydroxide drying Machine

Mode (mm)	inclination (%)	rotation speed (r/min)	rotation speed(r/min)	input temperature(ºC)	output (t/h)	floor area (m2)
TDWF-Ⅰ	3-5	3-8	≤850	9.2	1-1.5	60
TDWF-Ⅱ	3-5	3-8	≤850	12.5	1.5-2.5	80
TDWF-Ⅲ	3-5	3-8	≤850	19.5	2.5-3.5	100
TDWF-Ⅳ	3-5	3-8	≤850	25.5	3-4.5	200
TDWF-Ⅴ	3-5	3-8	≤850	33.5	4.5-5.5	200
TDWF-Ⅵ	3-5	3-8	≤850	42.5	5.5-6.5	300
