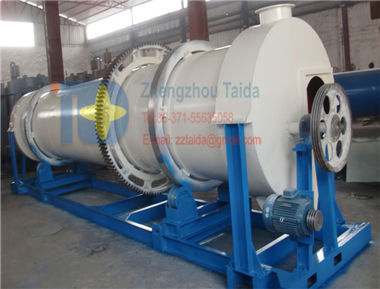

    Chicken manure dryer



Features of Chicken manure dryer:

Chicken manure dryer is a low-fuel-consumption and high efficiency of drying equipment

Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%

Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more

For resource development and good environmental protection equipment

The equipment uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional

Equipped with high-speed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique equipment design, makes materials difficult to adhere to the drum wall panels and parade

The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum dryer

The dryer structure is compact, easy to install and debug, and using small floor area

Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials

The dryer can combine the use of different fuels (such as coal, heavy oil, natural gas, and more)

Facilities and work principle of Chicken manure dryer:

The complete sets of equipment mainly is composed of the crushing drum dryer, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet, and other components

Work principle of Chicken manure dryer:

Conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices

Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process

Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere

Chicken manure dryer Technical Specification

Model TD-I TDG-II TDG-III TDG-IV TDG-V TDG-VI Note-
Capacity (T) 5-8 12-15 15-20 35-42 50-60 70-85 Moisture content below 65% if the moisture exceeds you can use dehydrator first
Inlet quantity(t/h) 0.6-1 1.5-2.5 2.5-3.5 4-5 5-6 6-7
Power (kw) 9.5 13 18.5 26 33.5 37
Area(m²) 25 35 45 60 80 100
Note: The capacity of above models can be achieved only after the material handled by the dewaterer.


Relevant cases:

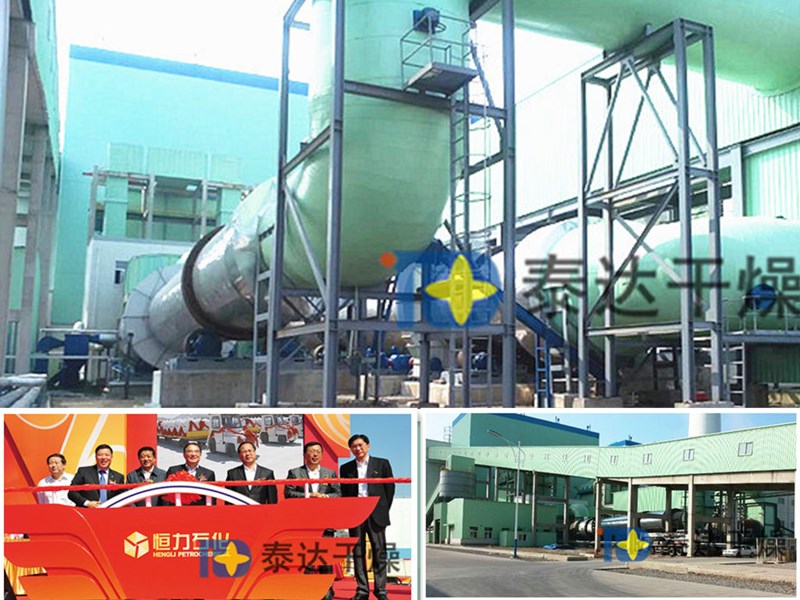

  • Sludge Alkaline Stabilization D
