Conveyor
FOB Price:     sent inquiry to us
Brand Name:     Taida
Model Number:     Can be customized
Mininum Order Quantity:     1SET
Supply Ability:     10 sets per month
Delivery Time:     25 days

buy   email

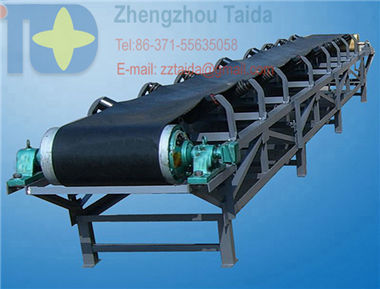

Description of conveyor

It has the advantages of simle structure, large delivery capacity, simple structure, convenient maintenance and standardized components.It is widely used in the fields such as mining, metallurgy and coal to convey incompact materials or the end product materials. To meet different layout operating line demands, materials can be conveyed by single machine or several machines or even combination with other conveying facilities.

Belt conveyor can work under the tempreture between -20℃ and +40℃. The tempreture of materials to convey should be below 50℃.

Technic specification of conveyor

Belt width (mm) Length（m） Power(Kw) Speed(m/S) Capacity (t/h)
400 ≤12/2.2 12-20/2.2-4 20-25/3.5-7.5 1.25-2.0 30-60
500 ≤12/3 12-20/3-5.5 30-30/5.5-7.5 1.25-2.0 40-80
650 ≤12/4 12-20/4-5.5 20-30/5.5-11 1.25-2.0 80-120
800 ≤6/4 10-15/4-5.5 15-30/5.5-15 1.25-2.0 120-200
1000 ≤10/5.5 10-20/5.5-11 20-40/11-22 1.25-2.0 200-320
1200 ≤10/7.5 10-20/7.5-15 20-40/15-30 1.25-2.0 320-480

If there is change of the above specification, it subjects to the newest products' specifications.
