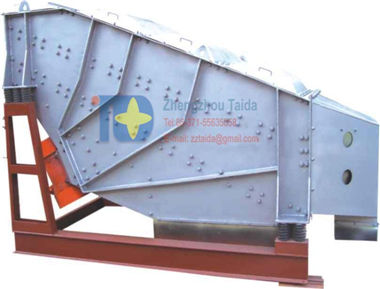

    Vibrating screen



Discription of vibrating screen

The vibrating screen (vibratory screen) is of various layers and high efficiency

The vibratory screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing

The screen is of the flowing characteristics, the screening line is long and specification of materials screened is various, and it is also of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, and more

The vibratory screen is widely used for screening in wide range including mines, building material, transportation, energy sources, chemical industry, and more

Working principle of vibratory screen:

The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, and more, the barrel-type vibration exciter is installed in the middle part of the machine

During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened

The big and small materials fall from the upper side and lower side of the screen to get them separated

Technical parameter:


Model
Screen size (mm) No. of Layer Screen mesh (mm) Max. feed size(mm) Handling capacity (t/h) Motor power (Kw) Vibrating frequency (r/min) Double swing(mm)
2YZS1237 3700×1200 2 3-100 400 10-80 11 750-950 5-9
3YZS1237 3700×1200 3 3-100 400 10-80 11 750-950 5-9
2YZS1548 4800×1500 2 3-100 400 30-200 15 750-950 5-9
3YZS1548 4800×1500 3 3-100 400 30-200 15 750-950 5-9
2YZS1848 4800×1800 2 3-100 400 50-250 18.5 750-950 5-9
3YZS1848 4800×1800 3 3-100 400 50-250 18.5 750-950 5-9
4YZS1848 4800×1800 4 3-100 400 50-250 18.5 750-950 5-9
2YZS1860 6000×1800 2 3-100 400 65-586 22 750-950 5-9
3YZS1860 6000×1800 3 3-100 400 65-586 22 750-950 5-9
4YZS1860 6000×1800 4 3-100 400 65-586 22 750-950 5-9
2YZS2160 6000×2100 2 3-100 400 81-720 30 700-900 5-9
3YZS2160 6000×2100 3 3-100 400 81-720 30 700-900 5-9
4YZS2160 6000×2100 4 3-100 400 81-720 30 700-900 5-9
2YZS2460 6000×2400 2 3-150 400 100-500 30 700-900 5-9
