Two-dimension Mixer

Total production amount: 0.3 to 60 t/h
Applications: it can be applied to metallurgy, drying, chemistry, building materials, battery materials, rare earth and other powder.
Materials: non adhesive materials and weakly bonded materials
Product introduction: zhengzhou taida is a professional and comprehensive factory which is specilized in research&development, design, manufacture, marketing and service of mixing and agitating equipment.

Sales Hotline:

0086-18539990967

Technical introduction

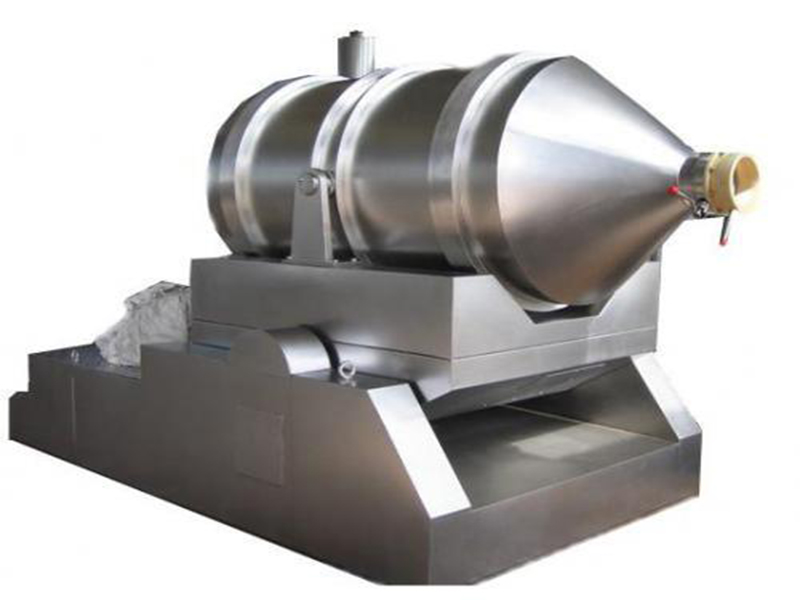

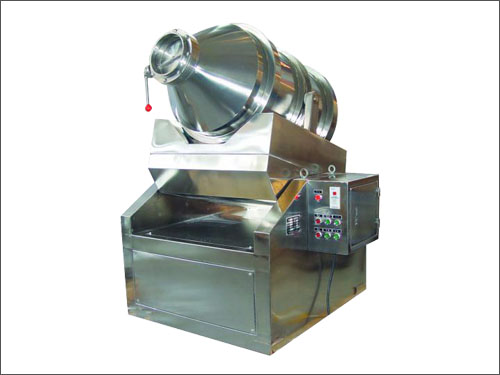

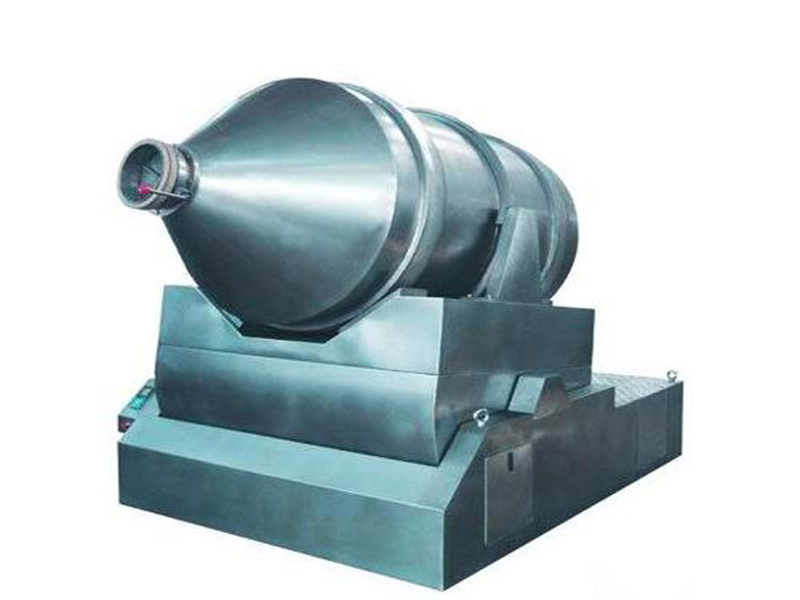

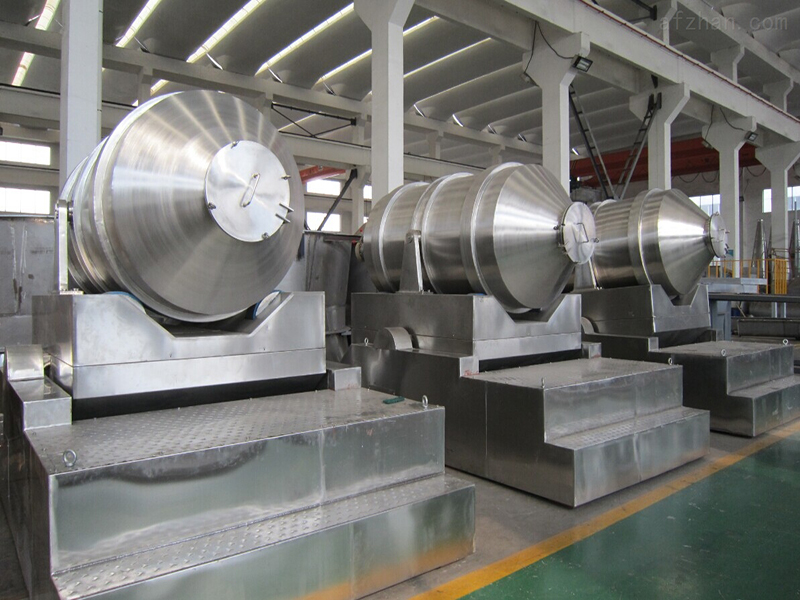

EYH series two-dimension motion mixer
Two-dimensional mixer’s full name is two-dimensional motion mixer. It means that mixing drum can move towards two directions which are the rotation of rotary drum and rotary drum’s swing along with swing frame. Mixed materials will rotate, turn and mix along with the drum. At the same time, with the swing of drum, materials will rotates along with the swing of drum. Under the common action of these two movement, materials will be mixed fully in a very short time.

Advantages

It means that mixing drum can move towards two directions which are the rotation of rotary drum and rotary drum’s swing along with swing frame. Mixed materials will rotate, turn and mix along with the drum. At the same time, with the swing of drum, materials will rotates along with the swing of drum. Under the common action of these two movement, materials will be mixed fully in a very short time. EYH series two-dimensional mixer can be applied to all kinds of mixture of powder and granular materials.
EYH series two-dimension motion mixer

Working principle

Two-dimensional mixer is mainly composed of three parts, rotary drum, swing frame and body frame. Rotary drum lies on swing frame and is supported by four rollers and will also be axially positioned by two catch wheels. Among four support rollers, two mixers are driving wheels which are dragged by rational dynamic system and produce rotation. Swing frame is driven by a group of crank swing lever which is installed on machine frame. Swing frame is supported on machine frame by bearing assembly, which makes rotary drum joins in swinging as well as rotating. Then, materials are mixed fully.

Technical parameters

Specifications (L)
Volume
Charge coefficient (kg)
Charge weight
(mm)
Dimensions
(kw)
Power

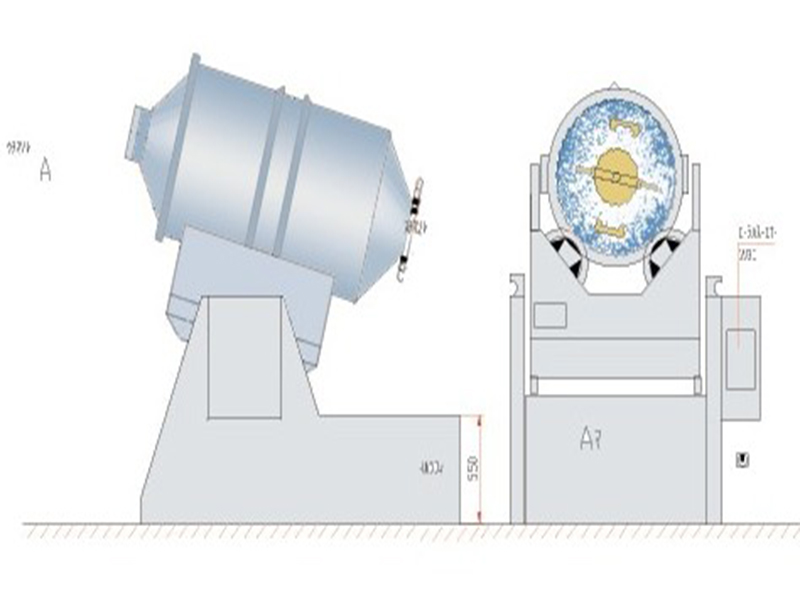

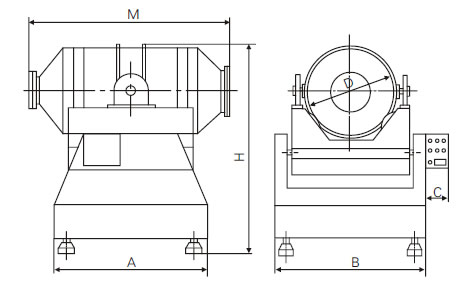

A B C D M H Rotation Rotation
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH1000 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
