Disc Continous Dryer

Materials: industrial sludge
Production capacity: 0.8 to 1.5 t/h
Moisture of materials: 15% to 65%
Source of materials: it can be used to chemical, medical, pesticide, food, forage and sludge products;

Sales Hotline:

0086-18539990967

Technical introduction

Disc continous drier is a kind of efficient conduction type continous drier. Its special structure and working principle decide its advantages such as high thermal efficiency, low energy consumption, small covering area, simple configuration, easy operation and good operation environment. It is widely applied to chemical, medical, pesticide, food, forage and agricultural sideline products. It enjoys good reputation amony various fields. At present, it is divided into three kinds, normal pressure, closeness and vacumm, four types (1200, 1500, 2200 and 3000), A (carbon steel); B (the area which contacts with materials is made from stainless steel); C (based on B, add steam line, main shaft and bracket made from stainless steel; the liners of drum body and cap top are made from stainless steel). There are three material qualities. Drying area is 4 to 180 square meters. There are hundreds of models in this series of equipment. We can also provide matched auxiliary equipment with these models. Customers’ different demands for drying various materials can be met by our products.

Advantages

1. Easy to adjust; wide adapability
Best drying effects can be fullfilled by adjusting the layer of materials, rotary speed of main shaft, numbers of rake arms, type of rake blade and size of rake blade.
A. Hot and cold media can be sent into each layer of drying tray to cool and heat materials; the temperature of materials is controlled precisely and easily.
B. The staying time of materials can be adjusted precisely;
C. The material flow is very single; no backmixing phenomenon; uniform quality; no need for more mixing;
2. Simple operation
A. The operation of starting and stoping is very easy;
B. After stopping feeding, materials in drier can be evacuated quickly by rakes;
C. Careful inspection and cleaing for equipment can be achieved by mirror of special view door;
3. Low energy consumption
A. Thin material layer; low rotary speed; small power is needed for material transmission; less electricity consumed;
B. Drier is realized by heat conduction; high thermal efficiency; less energy consumed;
4. Sound operation environment; solution can be recycled; the emission of dust meets relavant standard;
A. Normal pressure: owing to the slow flow speed and the distribution of moisture (top part with higher moisture,; lower part with lower moisture), it is hard for floating dust to go up to the top of the equipment. So there is almost no dust in the tail gas emissed from the moisture outlet.
B. Closeness type: there is solvent-recycle equipment installed to easily recycle organic solvent in gas carriny moisture. The recycle equipment is characterized by simple device and high recycle rate. For fammable, combustible toxic and oxidizable matters, nitrogen can work as gas with moisture to enter the closed circuit. Then, the whole process can be operated safely.
C. Vacumm type: under the vacumm circumstance, disc drier is pretty suitable for thermal-sensitive materials.
5. Easy installation and small covering area

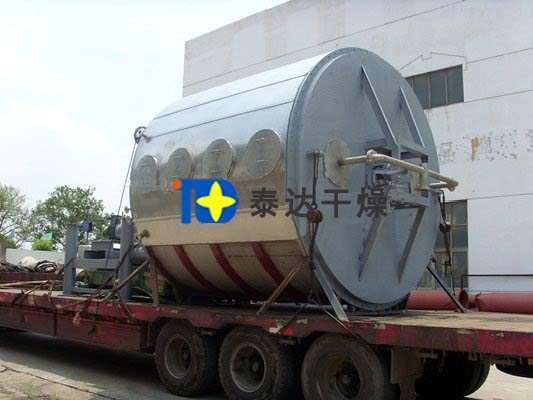

A. The drier leaves factory as a whole part; it is transported as a whole part; installating and fixing loaction are very simple. Buyers just need to lift the equipment and put it in place.
B. Due to the layer distribution of drier disc and vertical installation, the covering area is very small even though the drying surface is large. Main process: drying, pyrolysis, burning, cooling, reaction and sublimation;
C. Organic chemical products;
D. Inorganic chemical products;
E. Medicine, food, forage and fertilizers;

Working principle

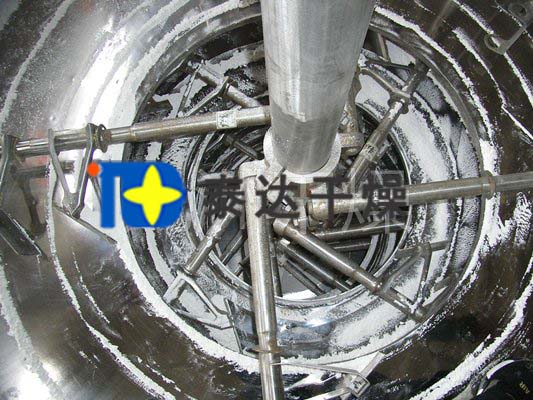

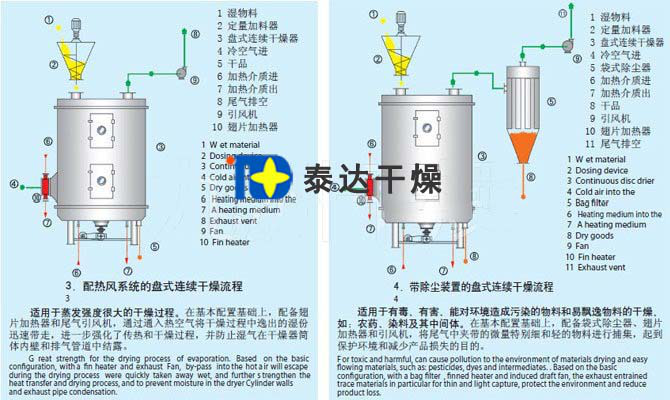

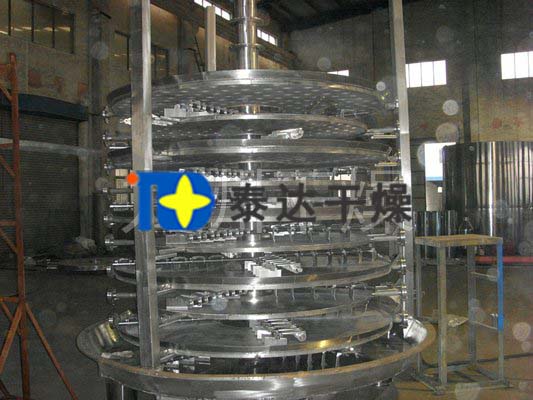

Wet materials are sent constantly to the first-layer drying tray which is on the top of drier. Rake arm makes rake blades rotate. Materials are stirred by the rotation of rake blades. Along the exponential screw line, materials flow by the surface of drying tray. Materials on the smaller drying tray are sent to the outer margin and drop to the outer margin of the bigger drying tray. Materials on large drying tray move to the center and drop on the small drying tray of next layer. Small and large drying trays are arranged up and down alternately. Materials can flow by the whole drier. Heating media is sent to a hollow drying tray. Heat media which can be divided into saturated steam, hot water and heat conduction oil. Heating media enter the drier from one end of drying tray and leave from the other end. Materials which have been dried drop the the bottom of shell body from the last-layer drying tray. Finally, materials are sent out to the outlet by rake blades. Moisture escape from materials and is discharged from the moisture outlet set on the top cap. Moisture in vacumm disc drier will be discharged out from the vacumm pump set on the top cap. Materials discharged from the bottom can be directly packed. Production capacity can be increased by adding fin heater, solvent recovery condenser, bag filter, dry material backmixing system and induced draft fan. Solvent in dry paste and thermal sensitive materials can be recycled easily and be pyrolyzed.

Technical parameters

1. Drying tray
A. Designed pressure: generally, the pressure is 0.4 Mpa. The highest pressure can reach to 1.6 Mpa.
B. Highest operation pressure: generally, it is not over 0.4 Mpa. The highest pressure can reach to 1.6 Mpa.
C. Heating media: steam, hot water, heat conducting oil; when the temperature of drying tray is 100 degree centigrage, heat it by hot water; 100 degree centigrade to 150 degree centigrade, use saturated water vapor not over 0.4 Mpa or over hot steam to heat the drying tray; 150 degree centigrade to 320 degree centigrade, use heat conducting oil to heat the tray; over 320 degree centigrade, use electricity, heat conducting oil and fused salt;
2. Material conveying system
A. Rotary speed of main shaft: 1 to 10 r/m, electromagnetic or frequency converison stepless speed regulation;
B. Rake arm: 2 to 8 rake arms fixed on main shaft on each layer;
C. Roll mill: for materials which are easily lumped and needs to be crushed, install as roll mill on proper position. Then, heat transfer and drying process can be strengthened;
3. There are three types of shell body, normal pressure, closeness and vacumm
A. Normal pressure: cylinder and eight prismatic shape; there are two kinds of structure, entirety and split. The inlet and outlet pipeline of heating media can be installed in the shell body or out of the shell body.
B. Closeness: cylinder shell body; can afford 5 Kpa inner pressure; The inlet and outlet pipeline of heating media can be installed in the shell body or out of the shell body.
C. Vacumm: cylinder shell body; designed pressure is 0.1 Mpa; inlet and outlet of heating media are installed in shell body;
4. Air heater
Generally speaking, it is used when evaporation amount is large. It is used to strengthen drying efficiency.
Specification Outer diameter (mm) Height( mm) Drying area(m2) Power(Kw)
1200/4 Φ1850 2718 3.3 1
1200/6 3138 4.9
1200/8 3558 6.6 1.5
1200/10 3978 8.2
1200/12 4398 9.9 2.2
1500/6 Φ2100 3022 8.0
1500/8 3442 10.7
1500/10 3862 13.4
1500/12 4282 16.1 3.0
1500/14 4702 18.8
1500/16 5122 21.5
2200/6 Φ2900 3319 18.5
2200/8 3739 24.6
2200/10 4159 30.8 4.0
2200/12 4579 36.9
2200/14 4999 43.1 5.5
2200/16 5419 19.3
2200/18 5839 55.4 7.5
2200/20 6259 61.6
2200/22 6679 67.7 11
2200/24 7099 73.9
2200/26 7519 80.0

Specification Outer diameter(mm) Height(mm) Drying area(m2) Power ( Kw)
2500/6 Φ3150 3319 26.3 4
2500/8 3739 35
2500/10 4159 43.8 5.5
2500/12 4579 52.5
2500/14 4999 61.3 7.5
2500/16 5419 70
2500/18 5839 78.8 11
2500/20 6259 87.5
2500/22 6679 96.3
2500/24 7099 105 13
2500/26 7519 113.8
3000/8 Φ3800 4050 48 11
3000/10 4650 60
3000/12 5250 72
3000/14 5850 84
3000/16 6450 96
3000/18 7050 108 13
3000/20 7650 120
3000/22 8250 132
3000/24 8850 144
3000/26 9450 156 15
3000/28 10050 168


Disc continous dryer
