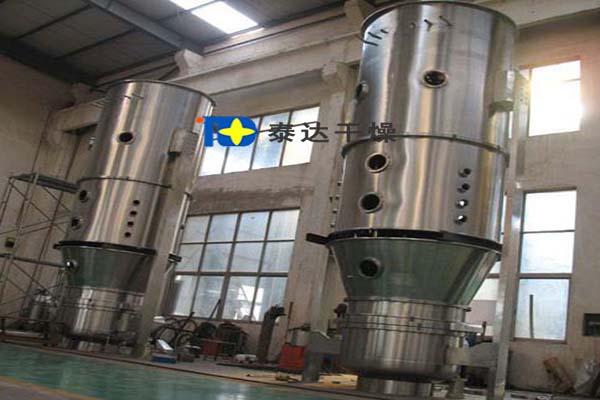

Boiling Dryer

Materials: granular materials;
Production capacity: 500 to 1.5 t/h
Moisture of materials: 20% to 60%
Application: applied to dry wet granularity and powder materials from medicine, food, forage and chemical field.

Sales Hotline:

0086-18539990967

Technical introduction

Material powder particles present annular fluidized state in raw material container (fluid bed). After being preheated and mixed by purified air, inject binder solvent, which will make numerous particles gather and form cumularsharolith with binder. Because hot air dries materials constantly, the moisture in cumularsharolith will be evaporated. Binder will be solidified. This process continues constantly in order to form ideal and uniform spherical particles with micropore.

Advantages

1. Improve liquidity and reduce flying dust by powder granulation;
2. Improve solubility property by powder granulation;
3. Mixing, pelletizing and drying are finished in one single machine;
4. Adopts anti-electricity filter cloth to grantee safe operation;
5. Pressure relief hole is set; workers will not be hurt even if explosion happens;

Working principle

Material powder particles present annular fluidized state in raw material container (fluid bed). After being preheated and mixed by purified air, inject binder solvent, which will make numerous particles gather and form cumularsharolith with binder. Because hot air dries materials constantly, the moisture in cumularsharolith will be evaporated. Binder will be solidified. This process continues constantly in order to form ideal and uniform spherical particles with micropore.

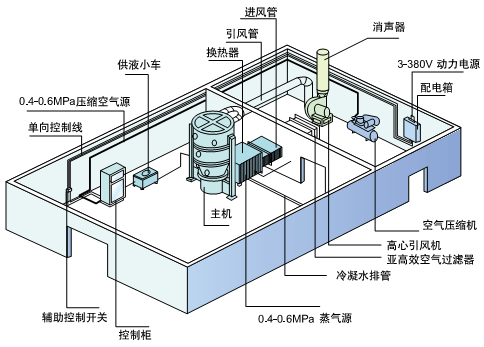

Process flow chart
Boiling dryer

Technical parameters

Projects Units Models
3 5 15 30 60 120 200 300 500
Container of raw materials Volume L 12 22 45 100 220 420 670 1000 1500
Diameter mm 300 400 550 700 1000 1200 1400 1600 1800
Production capacity Minimum kg 1.5 4 10 15 30 80 100 150 250
Maximum kg 4 6 18 36 72 140 240 360 600
Fan Air quantity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
Air pressure mmH2O 375 375 480 480 950 950 950 950 950
Power kw 3 4 5.5 7.5 11 18.5 22 30 45
Amount of steam consumption kg/h 15 23 42 70 141 211 282 366 451
Consumption of compressed air m3/min 0.6 0.6 0.6 0.9 0.9 0.9 1.1 1.5 1.5
Weight of host kg 250 300 700 900 1100 1300 1500 1800 2000
Pressure of steam Mpa 0.3~0.6
Temperature Not over room temperature minus 120 degree centigrade;
Can be adjusted;

Working period min It’s up to the quality of materials.45 to 90
Yield of materials % ≥99
Noise dB(A) Fan and host are installed separately; noise is not over 75 db.
Overall dimension M 1.0×0.55
×1.8
1.2×0.6
×2.1
1.25×0.75
×2.1
1.6×0.9
×2.3
1.85×1.25
×3
2.2×1.65
×3.3
2.34×1.7
×3.8
2.8×1.9
×3.8
3×2.25
×4.
