Heat Carrier Boiler

Thermal efficiency: ≤90%

Applications: it is applied to production industries such as metallurgy, drying, chemistry, building materials, refractory materials and fertilizer.

Materials: fuel oil
Product introduction: YYW series organic heat carrier boiler is also called fast loading and forced circulation fuel (gas). This series of boiler is characterized by large heating area and compact area. Heating area consists of coil pipes which are placed closely at inside, middle and o ut side (or inside and outside).

Sales Hotline:

0086-18539990967

Technical introduction

Advantages

Working principle

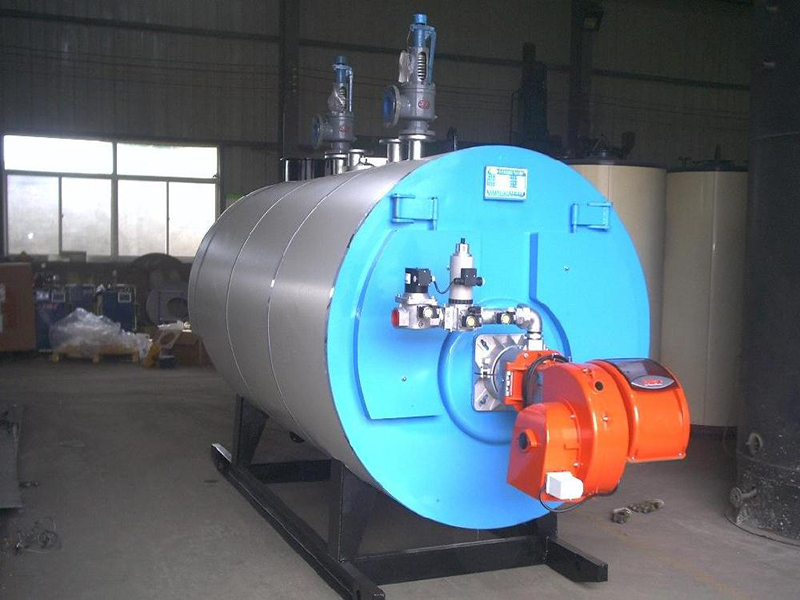

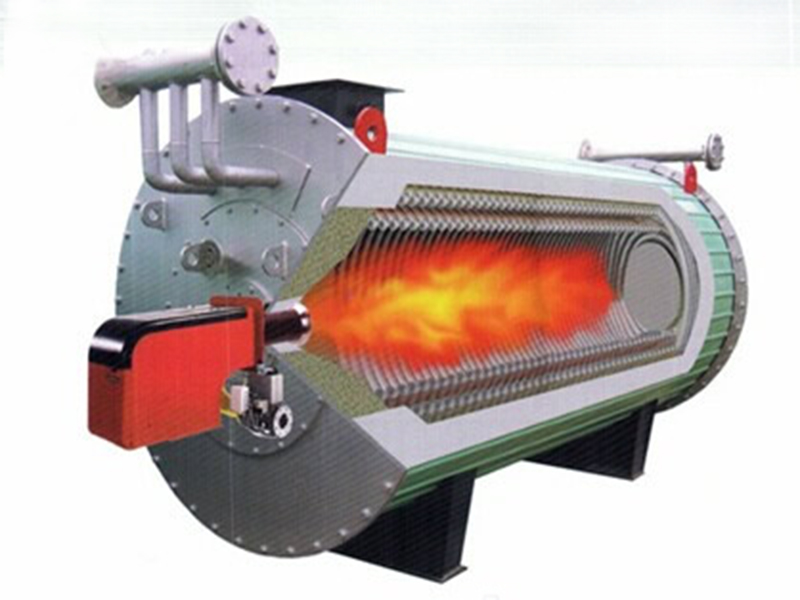

YYW series organic heat carrier boiler is also called fast loading and forced circulation fuel (gas). This series of boiler is characterized by large heating area and compact area. Heating area consists of coil pipes which are placed closely at inside, middle and o ut side (or inside and outside). Inner coil pipes are radiation heating surface.

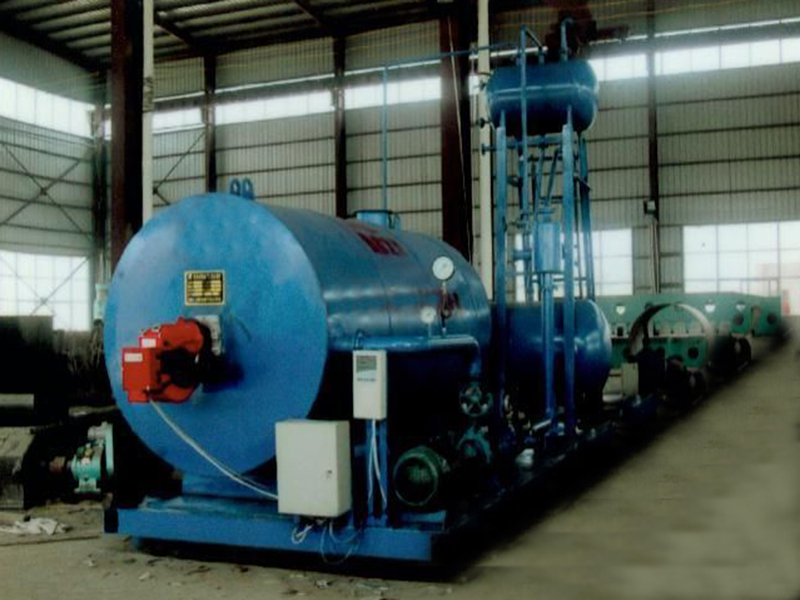

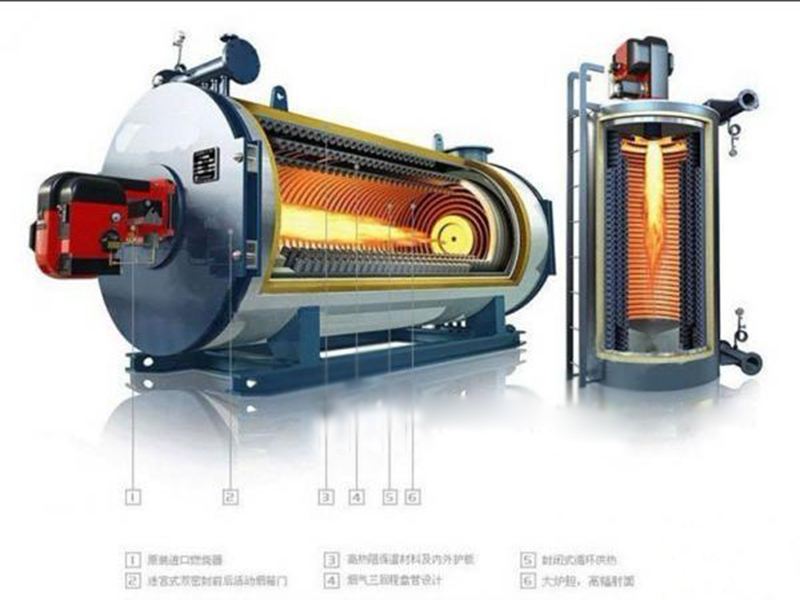

There is a convection heating surface formed between middle&outer coil pipes and inner coil pipes. Fuels are burnt and release heat in combustion chamber which is composed of inner coil pipes. After most amount of heat is absorbed by radiation heating-surface, flue gas with high temperature will enter convection heating surface for heat exchange. Efficient four-return design achieves even heat and low thermal inertia. Air enters boiler from air inlet of burner at the front of boiler. Then, air will pass through jacket between inner and outer layer from all around and join combustion at the back part. In this process, flue gas forms four returns and is discharged out from chimney.
Oil fired organic heat carrier boiler

Technical parameters

Technical parameters of organic heat carrier boiler:
Model
 Name
YYW0.3
(25)
YYW0.35
(30)
YYW0.6
(50)
YYW0.9
(75)
YYW1.2
(100)
YYW1.5
(235)
YYW1.8
(150)
YYW2.5
(200)
YYW3
(250)
KW
Rated power
0.3 0.35 0.6 0.9 1.2 1.5 1.8 2.5 3
%
Thermal efficiency
90 90 90 90 90 90 90 90 90
Mpa
Designed pressure
1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
°C
Maximum temperature
350 350 350 350 350 350 350 350 350

Oil capacity in boiler
0.21 0.25 0.28 0.44 0.64 0.793 1.25 1.76 1.90
m³/h
Circular oil amount
40 40 80 80 80 100 100 200 200
DN
Connecting piping diameter
100 100 100 100 125 125 125 150 150
KW
System installed capacity
14 14 22 22 40 40 40 66 70
Dimension Diameter 1016 1016 1216 1416 1716 1716 2000 2000 2320
Height 2050 2350 2450 2900 3300 3900 4100 5100 5300

Model

 Name
YLW-1200 YLW-1400 YLW-1750 YLW-2350 YLW-2900 YLW-3500
KW
Rated thermal power
1.25 1.4 1.78 2.5 3.0 3.5
%
Thermal efficiency
78 78 78 78 78 78
Mpa
Designed pressure
1.0 1.0 1.0 1.0 1.0 1.0
°C
Maximum
350 350 350 350 350 350
1.1 1.2 1.8 2.6 3.3 3.8
m³/h
Circulating oil am
110 130 160 180 220 240
DN
Connecting piping diameter
125 125 150 150 200 200
KW
System installed capacity
40 40 40 56 66 100
m
Dimension
Height 6 6 6 6 6.2 6.2
Width 2.2 2.6 2.6 2.8 3 3
Height 4 4.5 4.8 5.5 6 6
