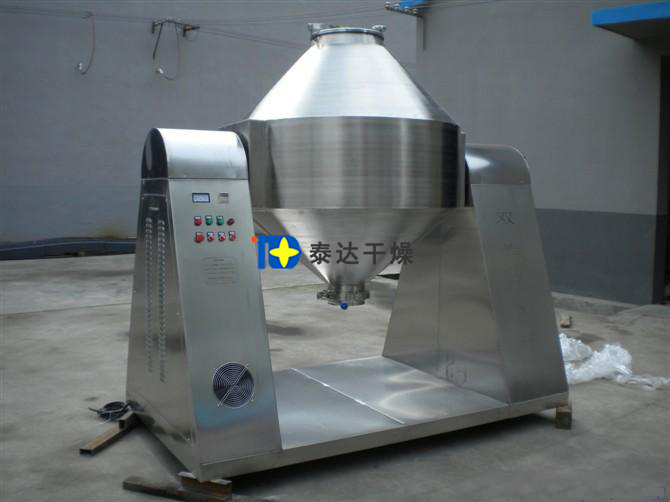

Rotary Vacumm Dryer

Materials: chemical industry;
Production capacity: 1t/h
Moisture of materials: 15% to 80%
Applications: applied to drying and mixing powder and granular materials from medicine, food and chemical industries.

Sales Hotline:

0086-18539990967

Technical introduction

SZG double conical vacuum dryer of my factory is a combination with domestic similar products. It is a new generation of drying device developed based on advanced technologies at home and abroad. Double cone vacuum adopts two elastic belts and chain connection mode, so the equipment can run smoothly. Specially designed process fully embodies the two supporting shafts of good concentricity. Heat medium and vacuum system both can adopt reliable mechanical seal or rotary joint. On this basis, we develop szg-A. It can achieve stepless speed regulation, but also can realize constant temperature control.
As a professional manufacturer of drying equipment, our factory has high temperature heat conduction oil as heat medium, temperature steam and low temperature hot water available. While drying adhesive raw material, the factory will specially design "copy board" institutions or rolling balls in the tank for you.

Advantages

When the oil is heated, the automatic constant temperature control can be used to dry the biochemical products;
2. Mineral raw materials: the temperature can be 20 to 160 degree centigrade;
3. High thermal efficiency: it is 2 times higher than common drier;
4. Indirect heating: materials will not be polluted; meet GMP requirements; easy operation; easy to clean;

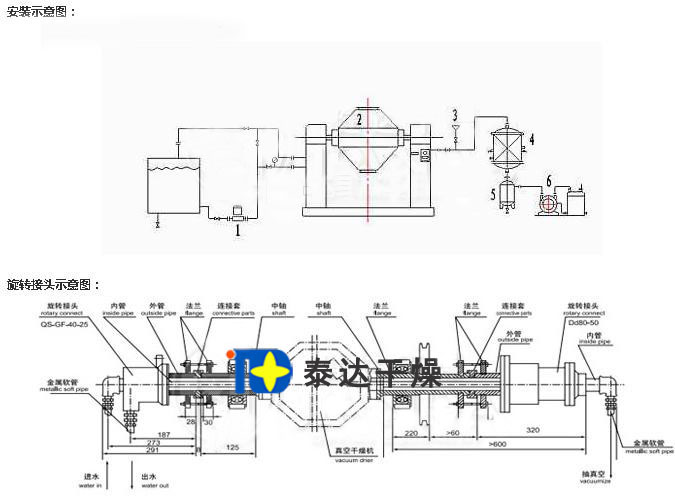

5. Recommended process for placement; demonstration of solvent recovery process placement.

Working principle

 Pump in heat energy (hot water, low pressure steam and heat conducting oil) in closed interlayer; heat is transferred to materials through inner shell;
2. Driven by power, the tank rotates slowly; material in tank mix with each other constantly so as to realize the purpose of strenghtening drying;
3. Materials are under the vacumm state; Steam pressure declines, which will makes moisture (solvent) on the surface of materials reach saturated state and evaporate. Then the moisture will be discharged out by vacuum pump timely. The moisture (solvent) inner materials infiltrates, evaporates and discharge to the surface of materials constantly. the aim to dry materials can be achieved in a very short time.

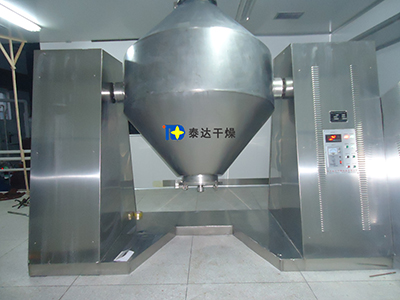

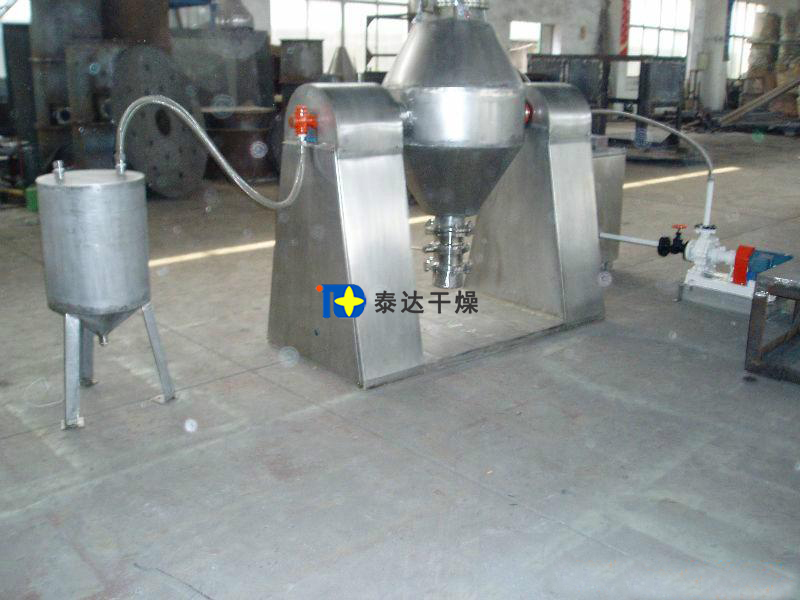

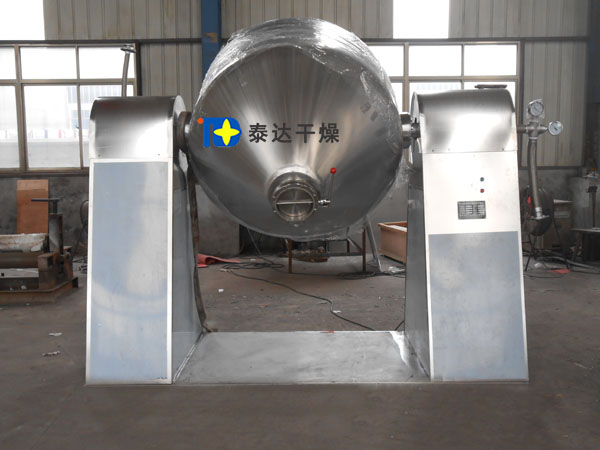

Double Cone Rotary Vacumm Dryer

Technical parameters

Model
Project
100 350 500 750 1000 1500 2000 3500 4500
Volume in tank 100 350 500 750 1000 1500 2000 3500 4500
Loading volume ≤50 ≤175         ≤250 ≤375 ≤500 ≤750 ≤1000 ≤1750 ≤2250
Rotary speed 3 to 13
Power of motor 0.75 1.1 1.5 2 3 3 4 5.5 7.5
Floor  area 2160×800  2260×800 2350×800 2560×1000 2860×1300 3060×1300 3260×1400 3760×1800 3960×2000
Rotary height 1750 2100 2250 2490 2800 2940      2990 3490 4100
Pressure designed in tank -0.1 to 0.15
 Gauge pressure ≤0.3
Working temperature  In the tank ≤85 In The Thank≤85               jacket ≤140 jacket≤140
While using condensator, the model of vacumm pump 2X-15A
2KW
2X-30A
2KW
2X-30A
3KW
2X-30A
3KW
2X-70A
5.5 KW
JZJX3000-4
7 KW
JZJX600-8
11 KW
JZJX600-4
20.5 KW
2X15A
2KW
While not using condensator, the model and motor of vacumm pump SK-0.4
1.5KW
SK-0.4
1.5KW
SK-0.8
2.2KW
SK2.7B
4KW
SK2.7B
4KW
SK-3
5.5KW
SK-6
11KW
SK-6
11KW
SKW-9
15KW
Weight 800 1100 1200 1500 2800 3300 3600 6400 7500
