Oil Injection System

Power of motor: 2.2-11kw

Applications: it is applied to production industries such as metallurgy, drying, chemistry, building materials, refractory materials and fertilizer.

Maximum fuel injection quantity: 1440-1460L/H


Sales Hotline:

0086-18539990967

Technical introduction

Advantages

In order to match with RS multi-pass burner, fuel combustion ignition device produced by our company consists of an injection gun which extends to a multi-pass burner, a higher pressure rubber hose with quick fitting and an operation pump for oil sucking and conveying.
Oil injection system
This kind of fuel combustion ignition devices a must for  cement production line with 2000t/d and anthracite rotary kiln burner. for a production line within 2000t/d, supply of materials can be decided according to user’s requests.
This product is characterized by oil saving. It has replaced foreign fuel injection gun in many cement production lines. It can save more than 50% oil. There is gear pump, motor, filter equipment and various valves.

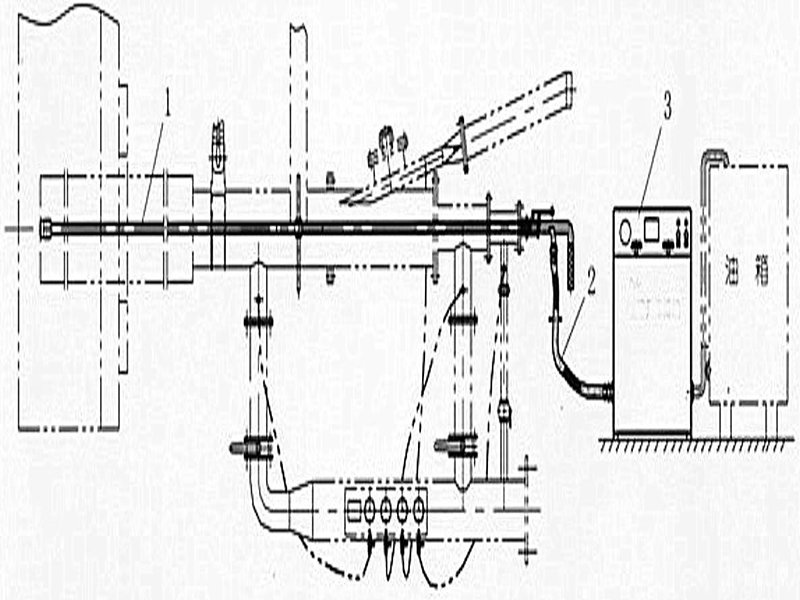

Working principle

Technical parameters

Specification Gear pump Model of motor (kw)
Power
(r/min)
Rotary speed
(L/H)
Maximum fuel injection quantity
Application
YQ-1 BW-63 Y100L-4 2.2 1440 1400 小于2000T/D
YQ-2 CB-32 Y112M-4 4 1440 2700 2500T/D以上
YQ-3 CB-E105 Y106M-4 11 1460 5200 7000T/D以上
